AUTOTERM
Air 9D
The most powerful heater from Air Series for heating big compartments or interiors. Ideal for any type of vehicle, from motorhome compartments to boat interiors!
OUR MOST POWERFULL AIR HEATER
KEY BENEFITS
Reliability
Reliable operation in low temperatures as low as -45°C/-49°F
High Efficiency
The heater consumes only 0.42 - 1.00 liters of diesel per hour, depending on set power.
Extended Warranty
If installation is registered by a certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.
POWERFUL BUT STILL COMPACT

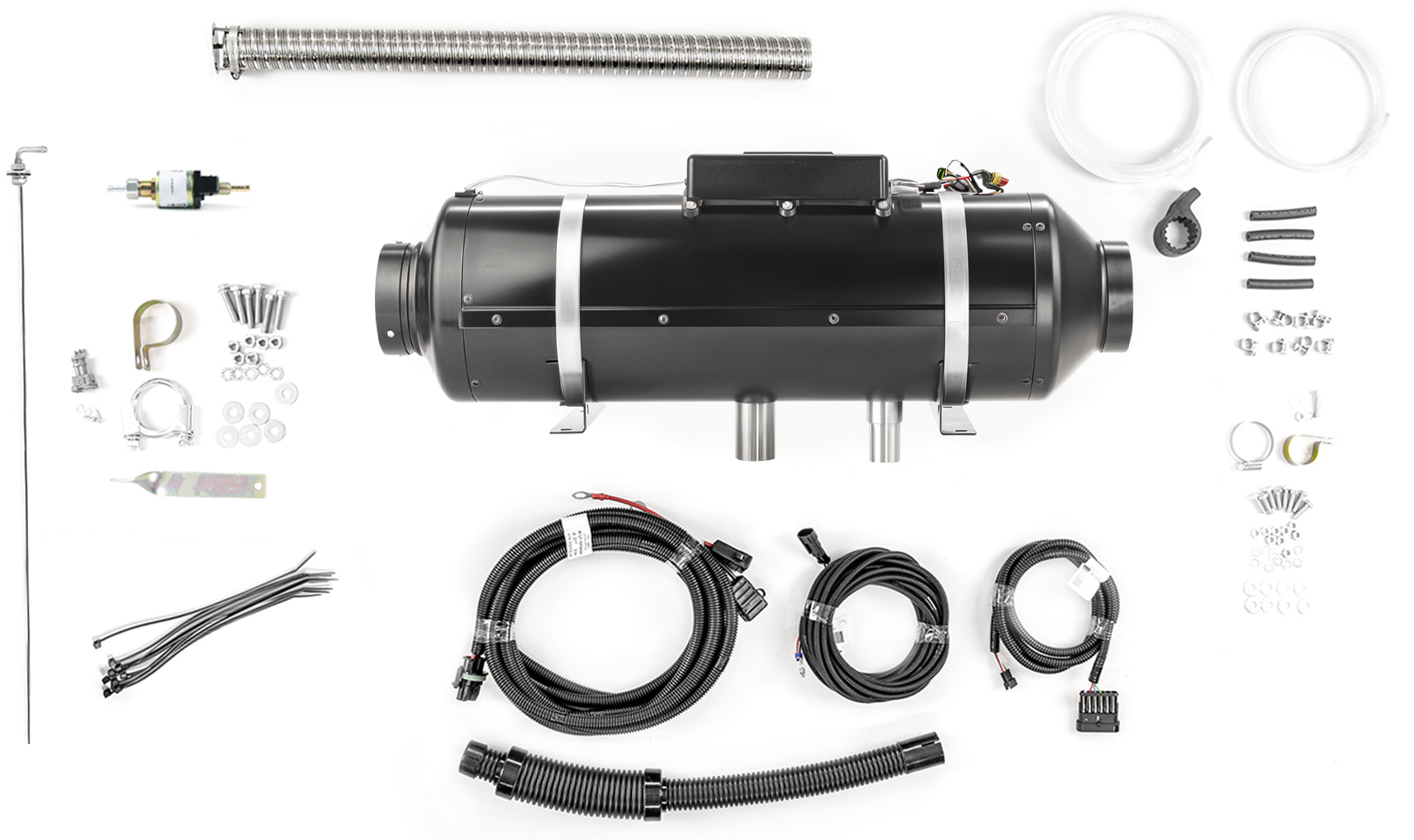

EASY TO INSTALL & RETROFIT
All AUTOTERM Air 9D heater standard kits include all essentials for both new and retrofitting installations.
THE STANDARD KIT INCLUDES:
MOST POPULAR APPLICATIONS
Trusted across industries and adventures
Motorhomes
Widely used by travelers and outdoor enthusiasts to heat campervans.
Commercial Vans
Ideal for heating the compartment to prevent goods from freezing when the temperature gets low.
Off-Highway
For enhancing comfort in the work environment.
Boats and Yachts
Commonly used for heating the interior of boats and small yachts. (Max length of up to 33 feet/10 m long).
Trucks
It's perfect for heating truck cabins, so the driver can rest comfortably, without the need to run the engine to keep himself warm.
COMPATIBLE WITH MULTIPLE CONTROL OPTIONS
Comfort Control
This panel features multiple work modes, advanced timers, multilingual support, and intuitive usage, making it a favorite among AUTOTERM users.
Comfort Boiler Control
This panel offers all the same features as Comfort Control, plus the ability to control AUTOTERM heaters and boilers simultaneously.
Modem QSTART
Plug & Play device with the ability to use Autoterm Control application on smartphone (available at Google Play and AppStore).
Push Control
User-friendly control option that delivers various operation modes. It comes together with a control module and a wire to connect to the heater.
Simple Control
Convenient and straightforward solution for managing AUTOTERM Air heaters.
CUSTOMIZED COMFORT WITH DIFFERENT WORKMODES
Workmodes might change depending on the used Control Panel!
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process.
POWER MODE
The heater will operate constantly at a set power level.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when temperature drops.
AIR HEATERS EXPLAINED!
Choosing The Right Power, Installation, High Altitude & More!
Air 9D SPECIFICATION
| Specification | Value | Unit |
|---|---|---|
|
Voltage
|
12 or 24 | V |
|
Heating medium
|
Air | - |
|
Heating power
|
3.2-8 | kW |
|
Heated air volume
|
70-413 | m3/h |
|
Power consumption
|
12-290 | W |
|
Fuel
|
Diesel - EN590 | HVO100 - EN15940 | - |
|
Fuel consumption
|
0.42-1.00 | l/h |
|
Max. work altitude (MASL)
|
1600 | m |
|
Control mode
|
Manual, standard remote control, modem | - |
|
Compatible control panels
|
Comfort Control, Comfort Boiler Control, Push Control, (OLED Control - Discontinued) | - |
|
Weight of the heater
|
12.8 | kg |
|
Weight of the set
|
18 | kg |
|
Heater dimensions
|
650x212x281 | mm |
|
Package dimensions
|
69x37x35 | cm |
