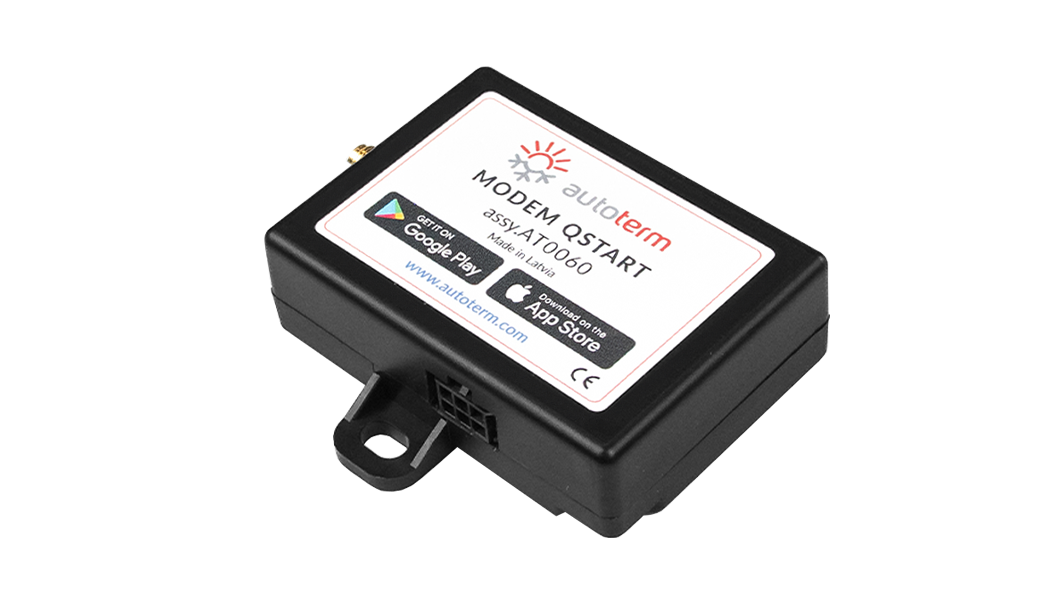

QSTART
Modem
Modem QSTART is a Plug & Play device with the ability to use Autoterm Control application on smartphone (available at Google Play and AppStore) to control any AUTOTERM air heater and liquid heaters.
EFFORTLESS CONTROL, NO MATTER THE DISTANCE
Remote Start/Stop
Control the heater by sending a text message. Modem QSTART uses a micro sim card slot.
Statuss Check
See the current status of the heater.
Timers
Start heater with pre-set working duration.
Operation Settings View
See the heater's current operation settings.
Temperature Check
See the current temperature of the compartment
HEATER COMPATIBILITY

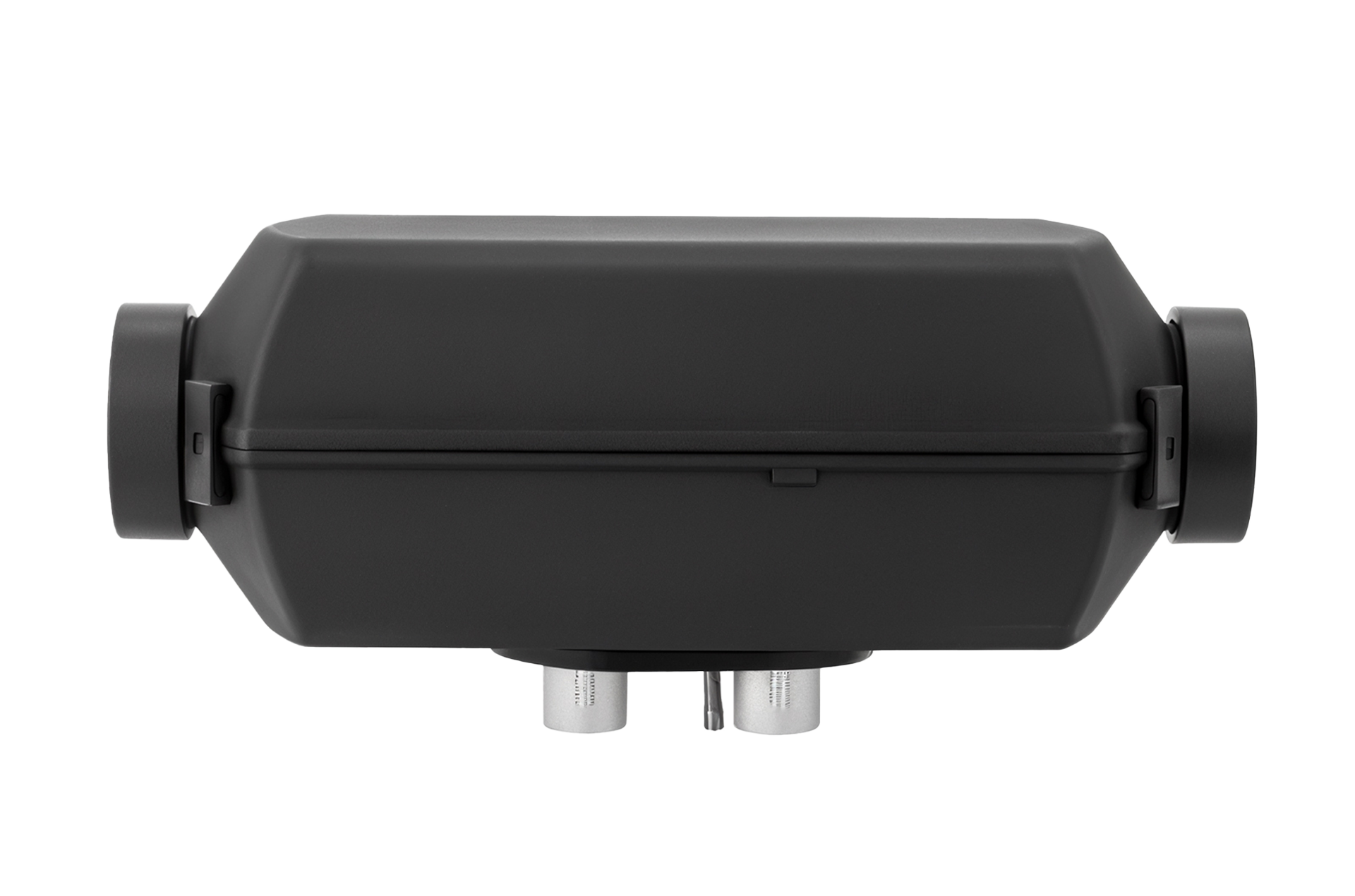

AIR Series heaters
Modem Qstart is suitable with AUTOTERM Air 2D, Air 4D, Air 8D, and Air 9D heaters if connected to Simlpe Control / OLED Control / Comfort Control control panels.

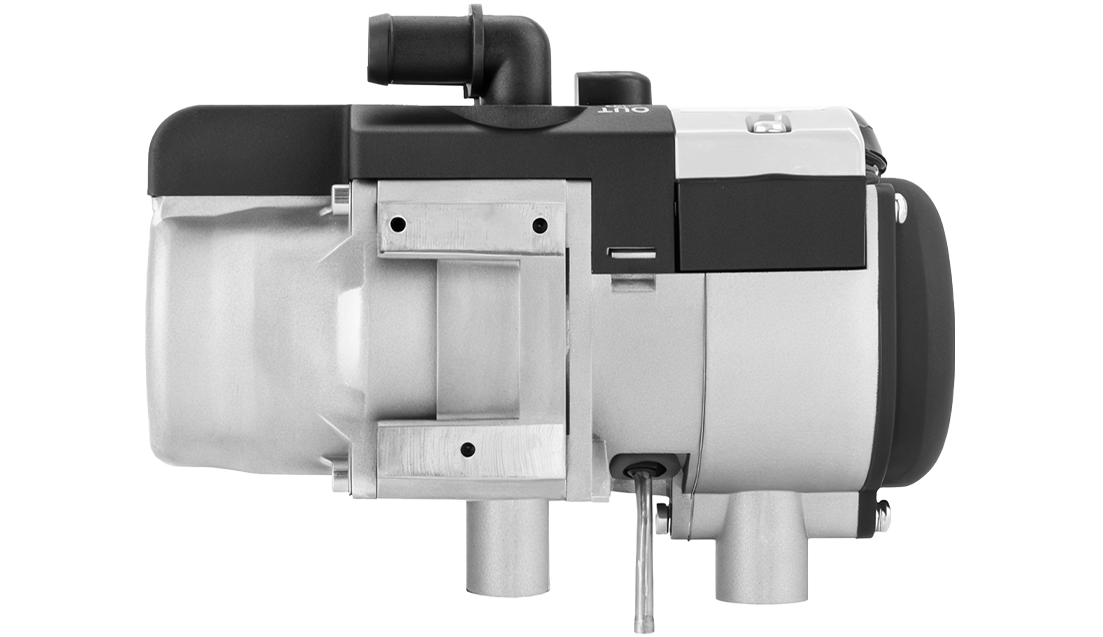

FLOW Series heaters
Modem Qstart is suitable with AUTOTERM Flow 5 with serial numbers that start with "E... and AUTOTERM Flow 14D if connected to OLED Control or Comfort Control control panel
GOOD TO KNOW!
About Extended Wiring
Use a 2.6m extension wire (assy.4269) to increase the length from modem QSTART to the control panel. Total length must not exceed 10m.
Connection With Air Heaters
To connect Modem QSTART to AUTOTERM Air Series heaters, use a 1.8m control panel wire (assy.2067). Wiring must not exceed 2m.
Control Panel Compatibility
For modem QSTART to work, the heater must be equipped with a Simple Control, OLED Control, or Comfort Control panel.
International Traveling
Modem QSTART features a micro SIM card slot for communication. Ensure your SIM card is compatible when traveling internationally.

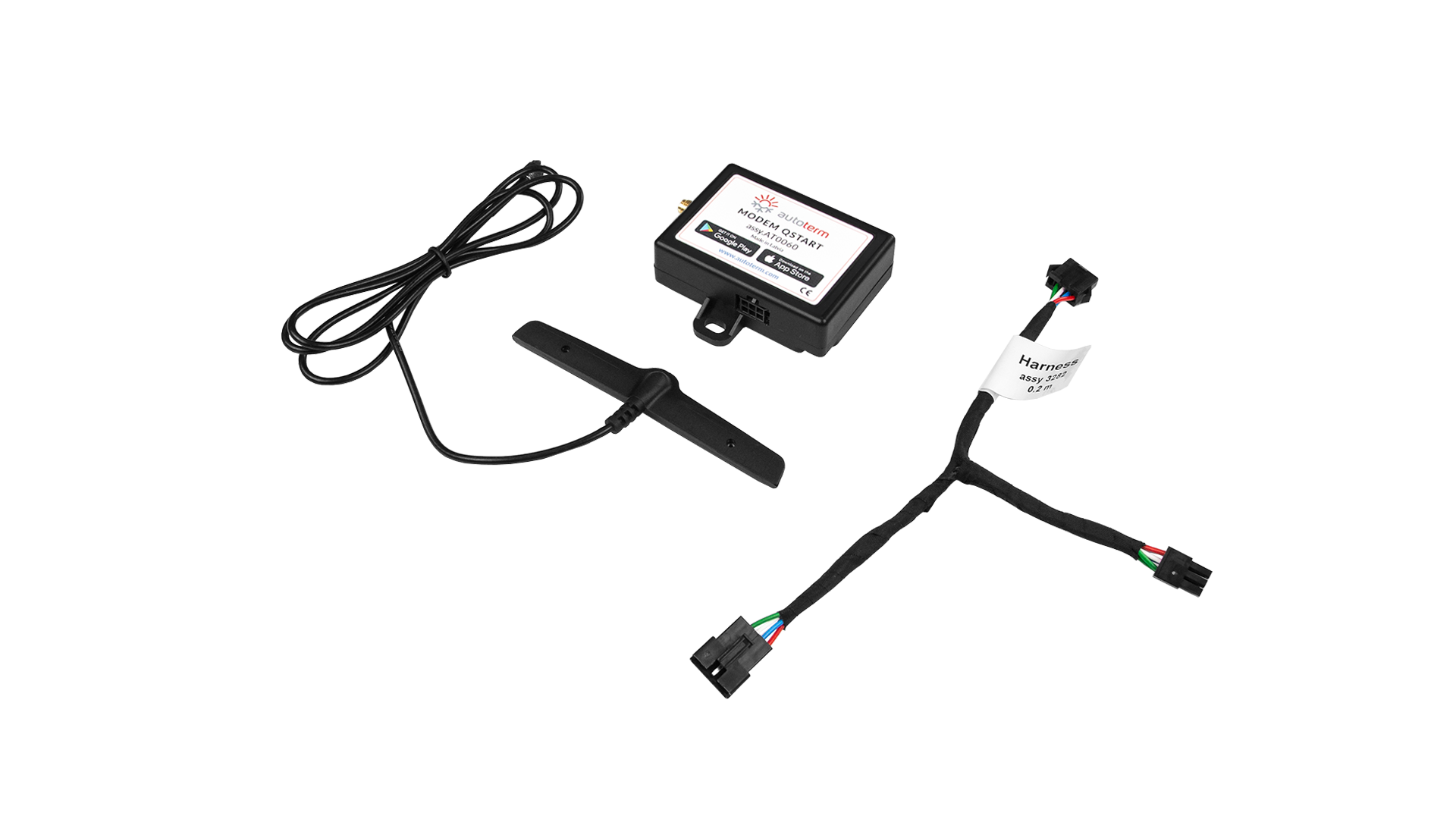

EASY TO RETROFIT
THE KIT INCLUDES:

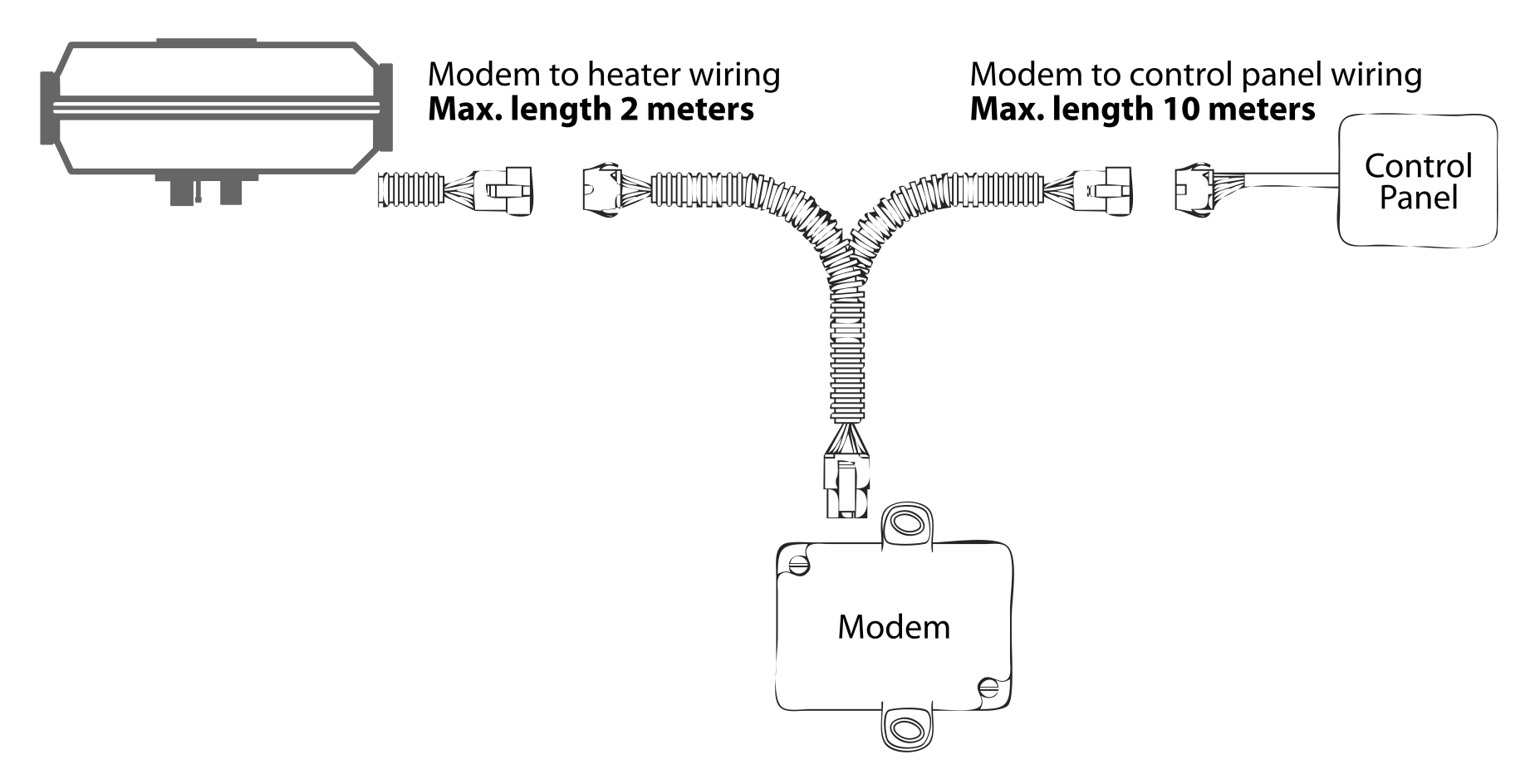

INSTALLATION GIDLINES
SUPPORTED LTE BANDS
| Specification | LTE Band | Up-link Band (MHz) | Down-link Band (MHz) | Band Width (MHz) | Duplex Spacing (MHz) | Band Gap (MHz) |
|---|---|---|---|---|---|---|
|
|
LTE Band 1 LTE Band 3 LTE Band 5 LTE Band 7 LTE Band 8 LTE Band 20 LTE Band 28 |
1920-1980 1710-1785 824-849 2500-2570 880-915 832-862 703-748 |
2110-2170 1805-1880 869-894 2620-2690 925-960 791-821 758-803 |
60 75 25 70 35 30 45 |
190 95 45 120 45 -41 55 |
130 20 20 50 10 71 10 |
|
Supported GSM bands:
|
GSM/GPRS: 900/1800 Мhz | |||||
|
Modem Qstart is suitable following AUTOTERM air heaters:
|
AUTOTERM Air 2D if connected to Simple Control / OLED Control / Comfort Control control panel AUTOTERM Air 4D if connected to Simple Control / OLED Control/ Comfort Control control panel AUTOTERM Air 9D if connected to Simple Control / OLED Control / Comfort Control control panel |
|||||
|
Modem Qstart is suitable following AUTOTERM liquid heaters:
|
AUTOTERM Flow 5 (Diesel/Petrol) with serial numbers that start with "E...." if connected to OLED Control or Comfort Control control panel. AUTOTERM Flow 14D if connected to OLED Control or Comfort Control control panel. To connect QSTART modem to liquid heater AUTOTERM Flow 14D, necessary additionally order Modem harness-adapter assy.3814 |
|||||
