Push
Control Panel
The AUTOTERM Push Control is a compact and user-friendly device designed for operating AUTOTERM heaters with various operation modes and features, depending on the specific heater model. It comes together with a control module and wire to connect to the heater.
Water Resistant
IP67-Grade
Two Models
Short & Long
Stainless Steel
Body
Easy
To Use
WORKMODES & OPERATION WITH AIR SERIES
The workmodes change, depending on whether an External Temperature Sensor (Assy: 1458 or AT4-0017-AA0 ) is connected to the heater!
WITHOUT EXTERNAL TEMPERATURE SENSOR
The heater will operate in 5 power modes that can be changed by clicking the panel.

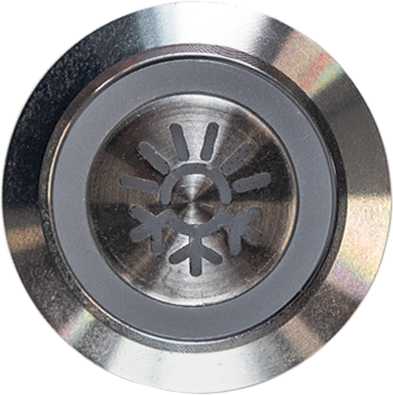

HEATER OFF

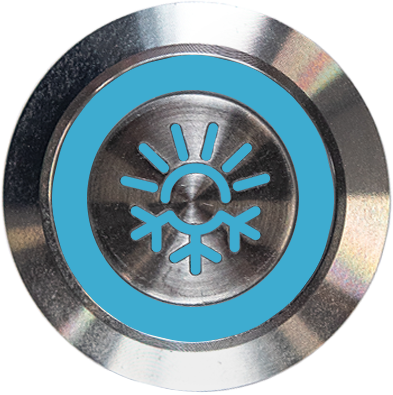

POWER LEVEL 2

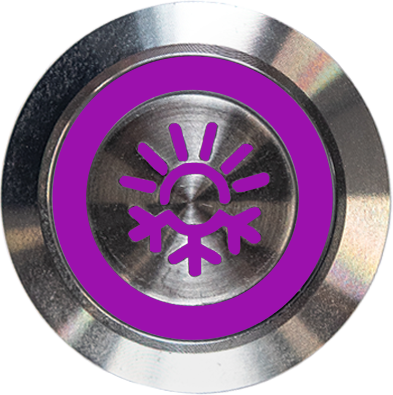

POWER LEVEL 4

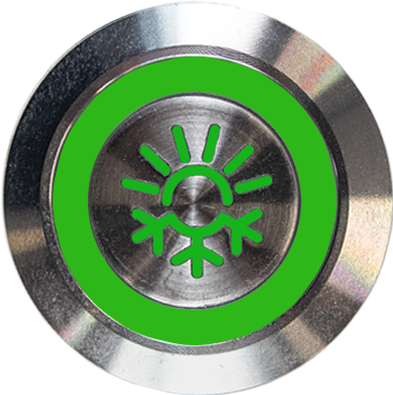

POWER LEVEL 6

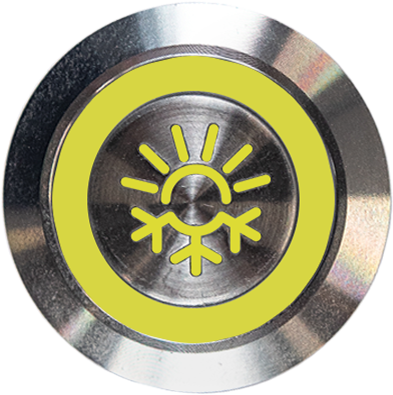

POWER LEVEL 8

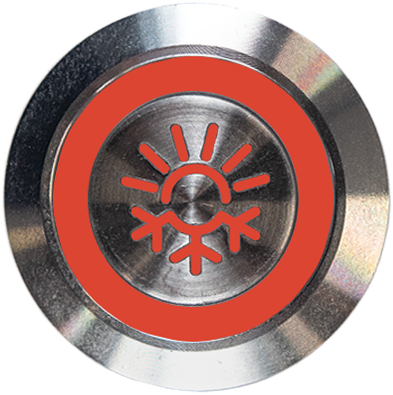

POWER LEVEL 10
TEMPERATURE SENSOR CONNECTED
Choose from 4 temperature modes that can be changed by clicking the Push Control Panel.
HEATER OFF
18°C
21°C
25°C
MAX POWER

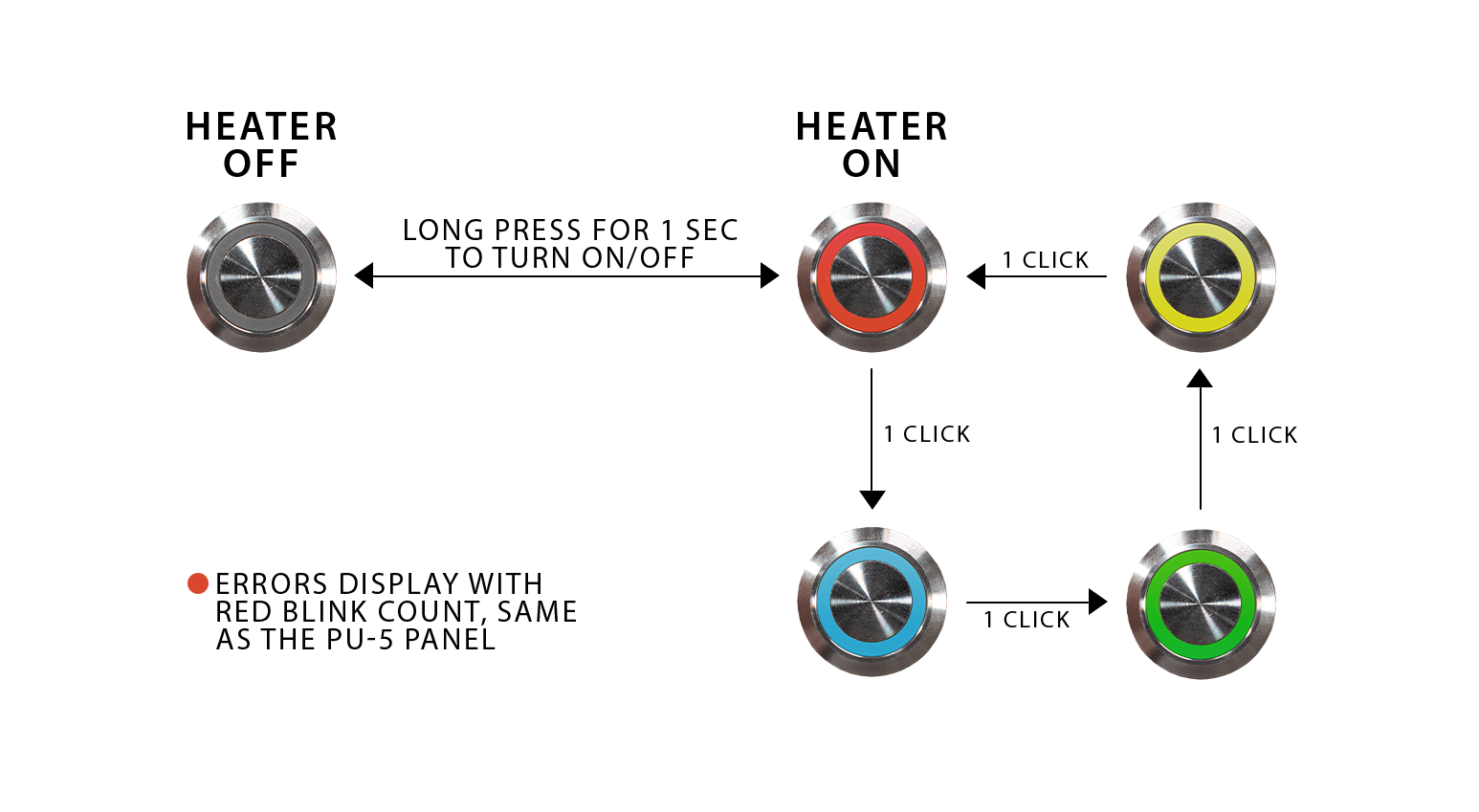

NAVIGATION BETWEEN MODES
WORKMODES & OPERATION WITH FLOW SERIES
The Push Control will activate the Flow heater in preheating mode either for 2 hours or for an infinite time, until it's manually turned off.
PRE-HEATING MODE ONLY
HEATER OFF
HEATER WORKS FOR 2 HOURS AND THEN AUTOMATICALLY TURNS OFF
HEATER WORKS UNTIL IT'S MANUALLY TURNED OFF
NAVIGATION BETWEEN MODES

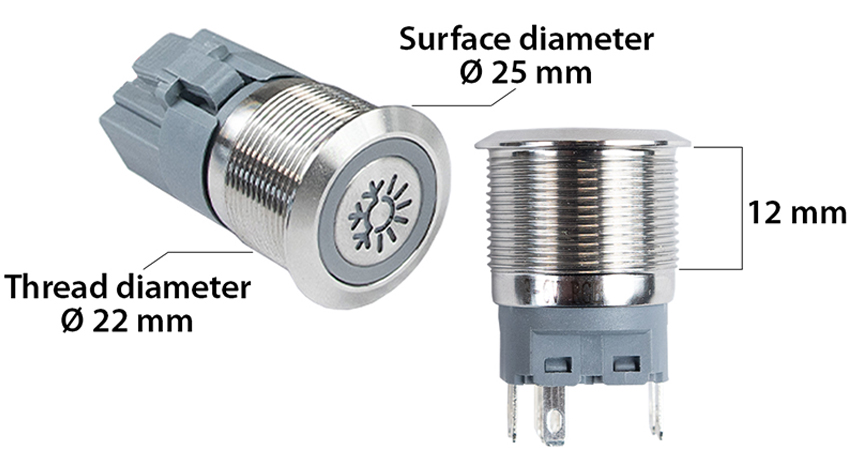

AVAILABLE IN TWO SIZES!
Molex Connector
Push Control S
Round Connector
Push Control L
SECOND PANEL OPTION

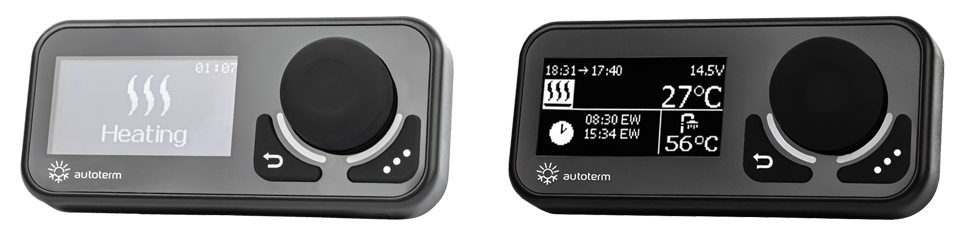

COMFORT & BOILER CONTROL
Push Control pairs with AUTOTERM Comfort Control and Comfort Boiler Control to provide dual control for a single heater system.
Note that a Push Module Wire (assy. AT4-0014-AF0) is necessary to connect them!

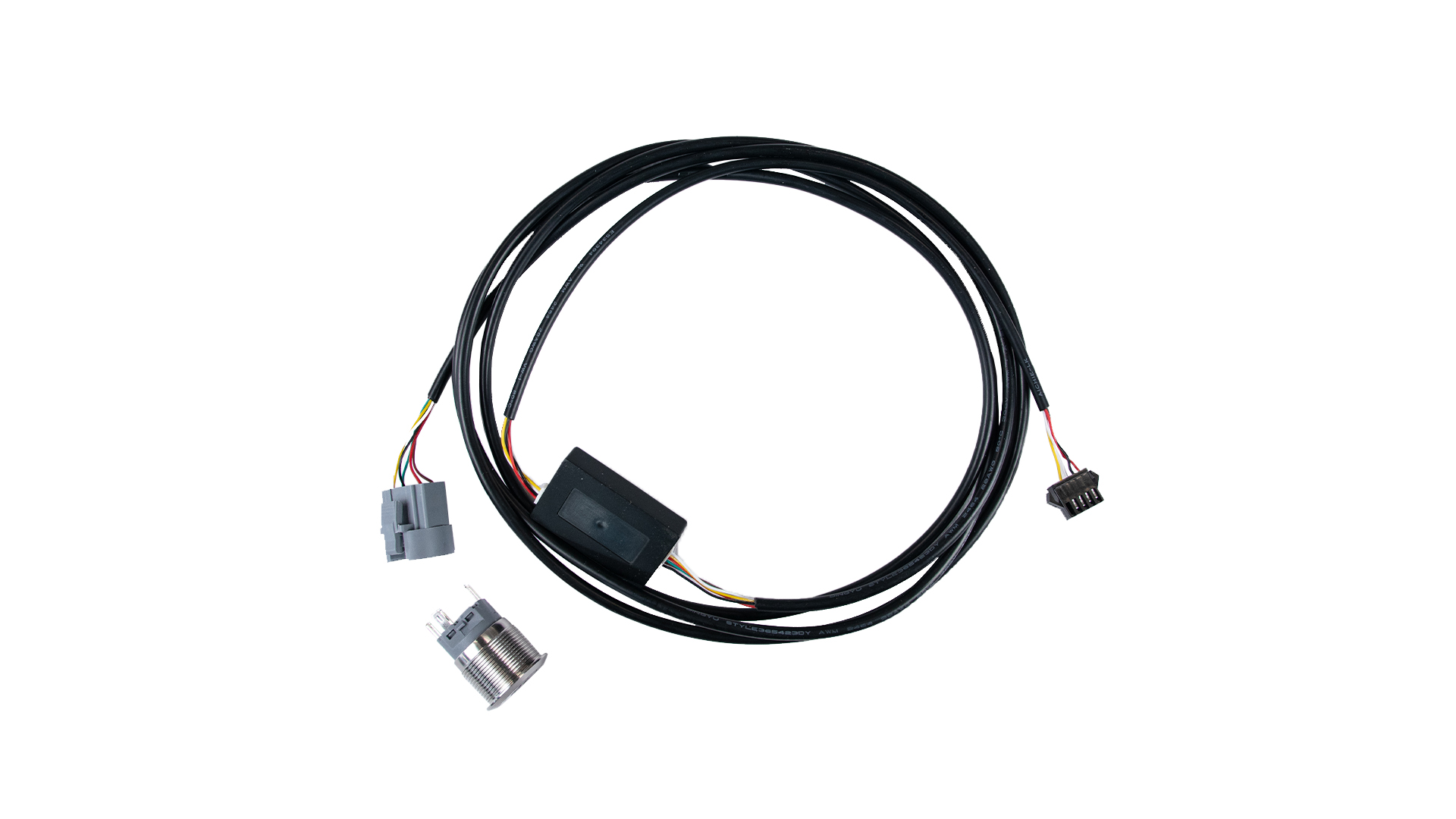

KIT CONTENTS
Complete Kit
THE STANDARD KIT INCLUDES:
Push Control (S or L)
1pce
Module Wire Length To Push Control - 2 m
1pce
Module Wire Length To Heater - 30 cm
1pce
Module
1pce
VIDEO REVIEW
Features, compatibility & more!
Technical Data
Push Control SPECIFICATION
|
Heating modes for Air heaters
|
POWER MODE: The default heating mode for the Push Control button. TEMPERATURE MODE (Works only with a connected external temperature sensor): Designed to heat the space to the required temperature; Heat output decreases as the difference between the desired temperature and the temperature in the space decreases. * The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below the temperature setpoint before starting again. |
|
Heating modes for Liquid heaters
|
PRE-HEATING MODE: The heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again. |
|
Temperature sensor
|
Custom calibrated digital sensor with +/- 1.5 degree offset. |
|
Status display
|
MIN= Blue LOW= Purple MED= Green High= Yellow MAX= RED Blinking RED - error code Blinking Red/Blue - switching off |
|
Wiring compatibility
|
assy.2067 - Wiring for control panel (1.8 m) assy.2324 - Wiring for control panel (5.0 m) assy.3298 - Wiring for control panel (7.0 m) assy.4269 - Extension wiring for control panel (2.6 m) assy.4111 - Extension wiring for control panel (3 m); assy.2468 - Extension wiring for control panel (5 m); assy.4366 - Cable wiring for AUTOTERM Flow 5D (12V) assy.4044 - Cable wiring for AUTOTERM Flow 5D / 5B (12V) assy.4394 - AUTOTERM Flow 14D wiring harness for control panel (1.8 m) Maximum allowed cable wiring length with Comfort Control - 10 m |
|
AUTOTERM heater compatibility
|
AUTOTERM air heaters: AUTOTERM Air 2D AUTOTERM Air 4D AUTOTERM Air 9D AUTOTERM liquid heaters: AUTOTERM Flow 5D / 5B AUTOTERM Flow 14D (for verification of compatibility for older heaters sold by AUTOTERM, please contact us at service@autoterm.com) |
|
Button surface diameter
|
25mm |
|
Button thread diameter
|
22mm |
