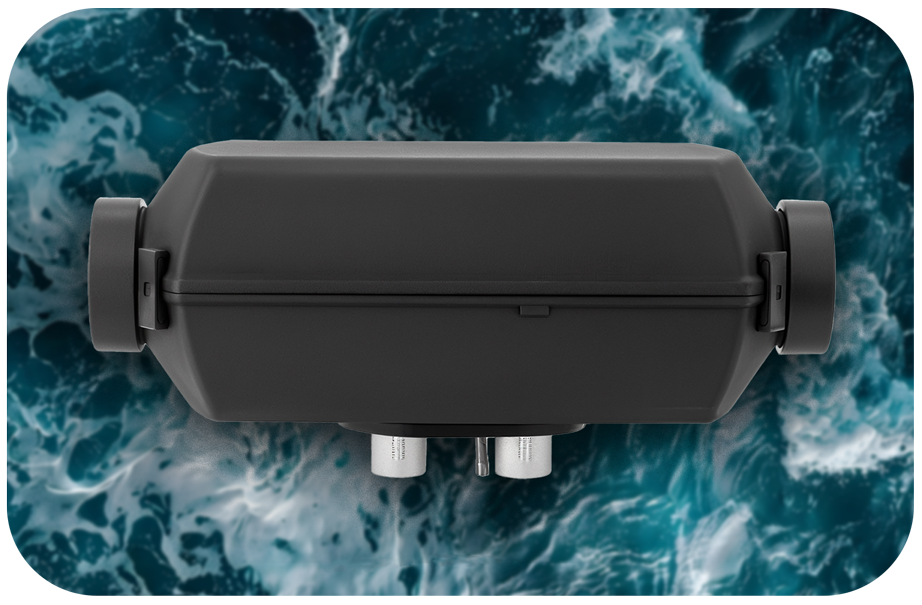

The heater's compact size allows for easy installation in tight compartments
AUTOTERM
Air 2D Marine Accessories Sets
Best suited for Boats & Yachts up to 33 feet/10 m long
These upgraded sets for the AUTOTERM Air 2D heater include a full, marine-grade installation kit and essential marine accessories, ensuring a smooth and efficient setup. Designed for ease of use, they streamline the installation process, saving time while providing a professional, high-quality finish for marine applications.
2 kW
Power
12/24V
Voltage
Diesel
Fuel
COMFORT & PROTECTION
All-in-one.
Mold Protection
Air heating reduces moisture levels, lowering the risk of mold growth during storage.
Frost Protection
With automatic heating cycles, frost protection is ensured during storage, keeping equipment and supplies safe.
Extended Season
Ensures a warm and dry cabin to enjoy maritime adventures regardless of cold or humid weather conditions.
Easier Installation
Save time with all marine-specific accessories conveniently packed in one kit!
High Efficiency
The heater consumes only 0.10 - 0.24 liters of diesel per hour, depending on set power.
Extended Warranty
If installed by certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.
FLEXIBLE OPTIONS - CHOOSE FROM THREE SETS!

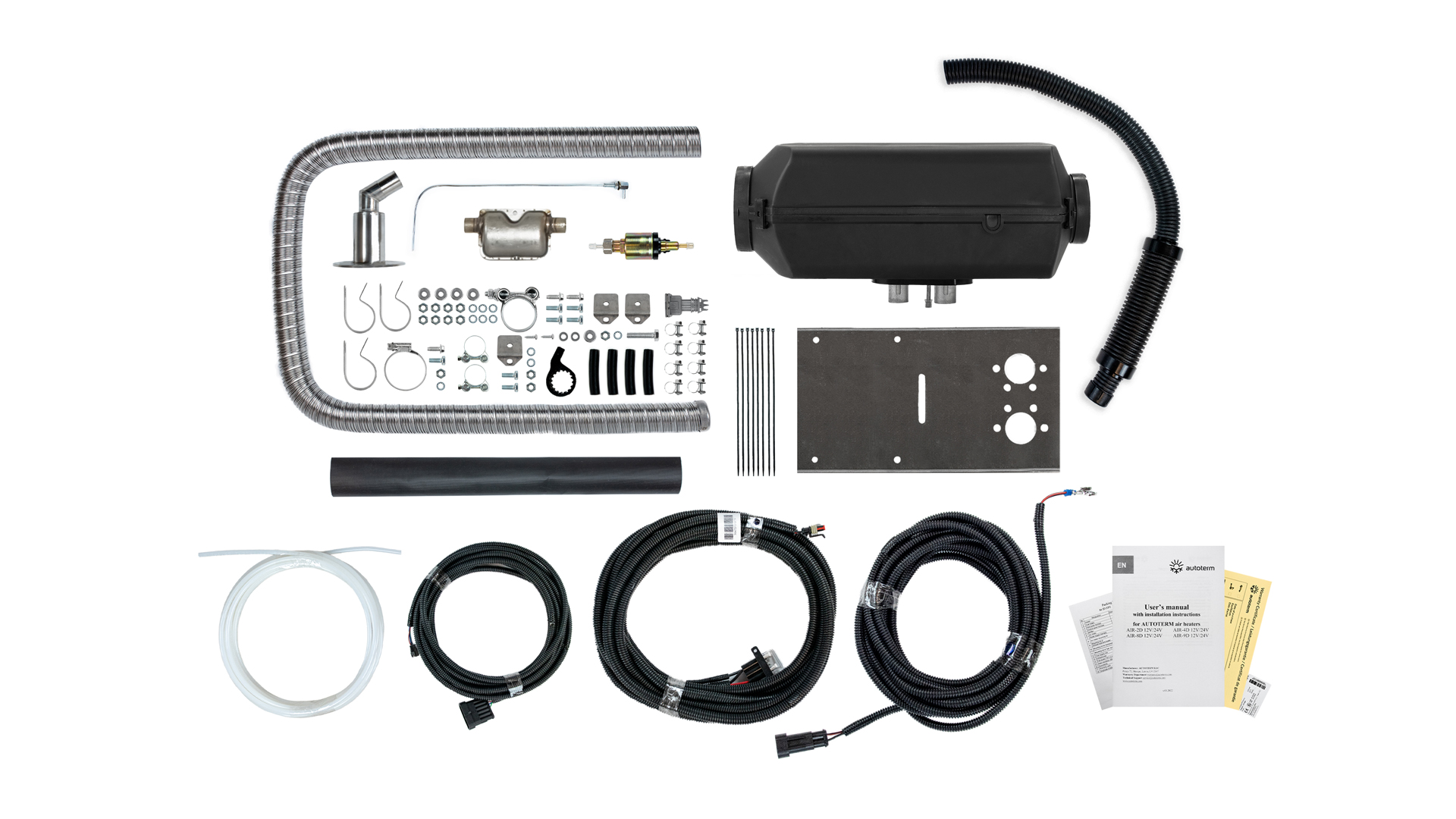

Small Set
AUTOTERM Air 2D Small Marine Set
AUTOTERM Air 2D Standard Kit
1pce
Bendable Mounting Bracket
(Assy. AT0001)
1pce
Exhaust Adapter
(Assy: AT0003)
1pce

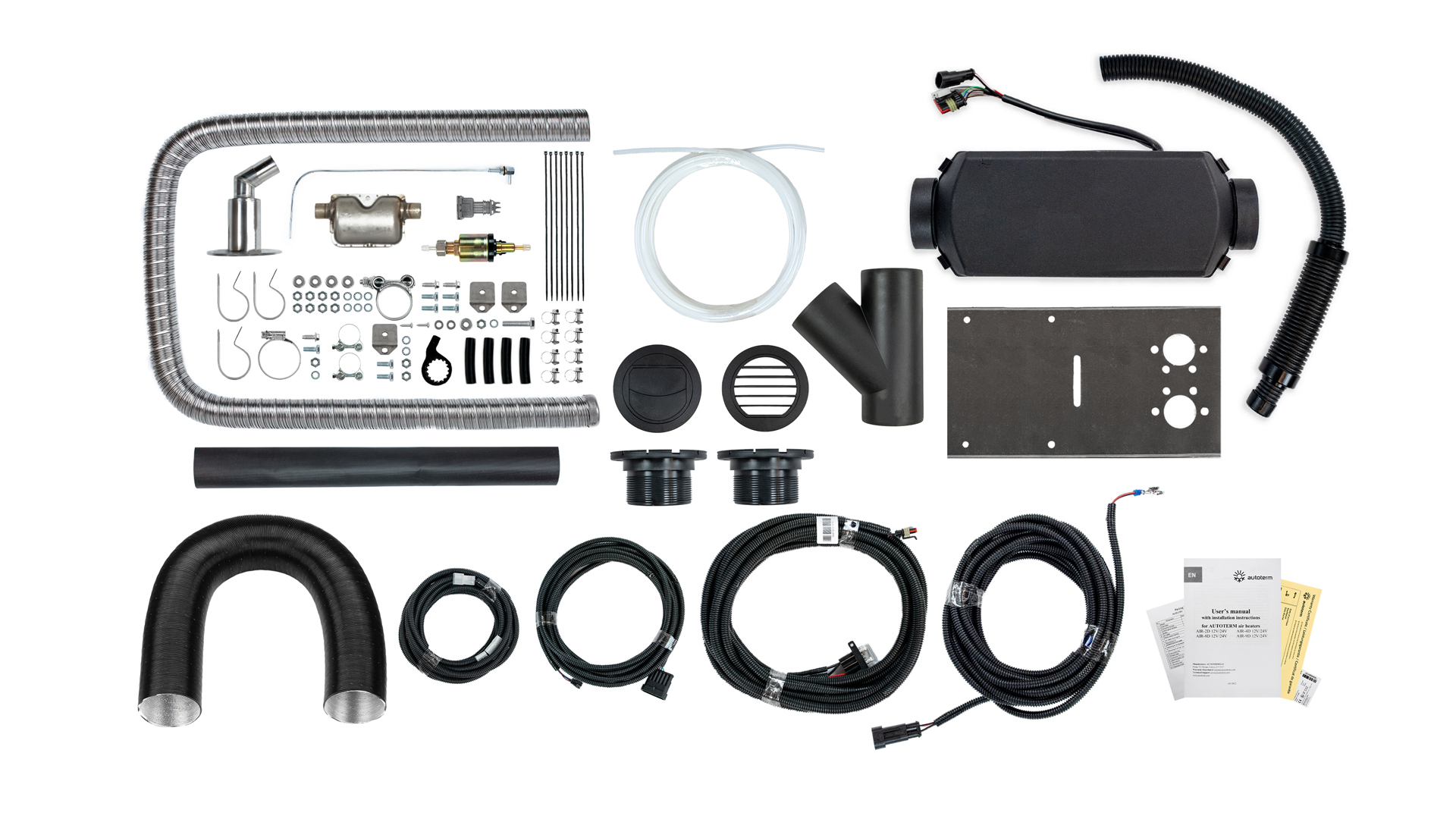

Medium Set
AUTOTERM Air 2D Medium Marine Set
AUTOTERM Air 2D Standard Kit
1pce
Bendable Mounting Bracket
(Assy. AT0001)
1pce
External Temperature Sensor
(Assy: 1458)
1pce
Exhaust Adapter
(Assy: AT0003)
1pce
Grille
(Assy: P4943)
1pce
Air Ducting Pipe
(Assy: DE013)
2m
Closable Deflector
(Assy: 4099)
1pce
Flange
(Assy: P4931)
1pce
Y-shape Adapter
(Assy: P5006)
1pce

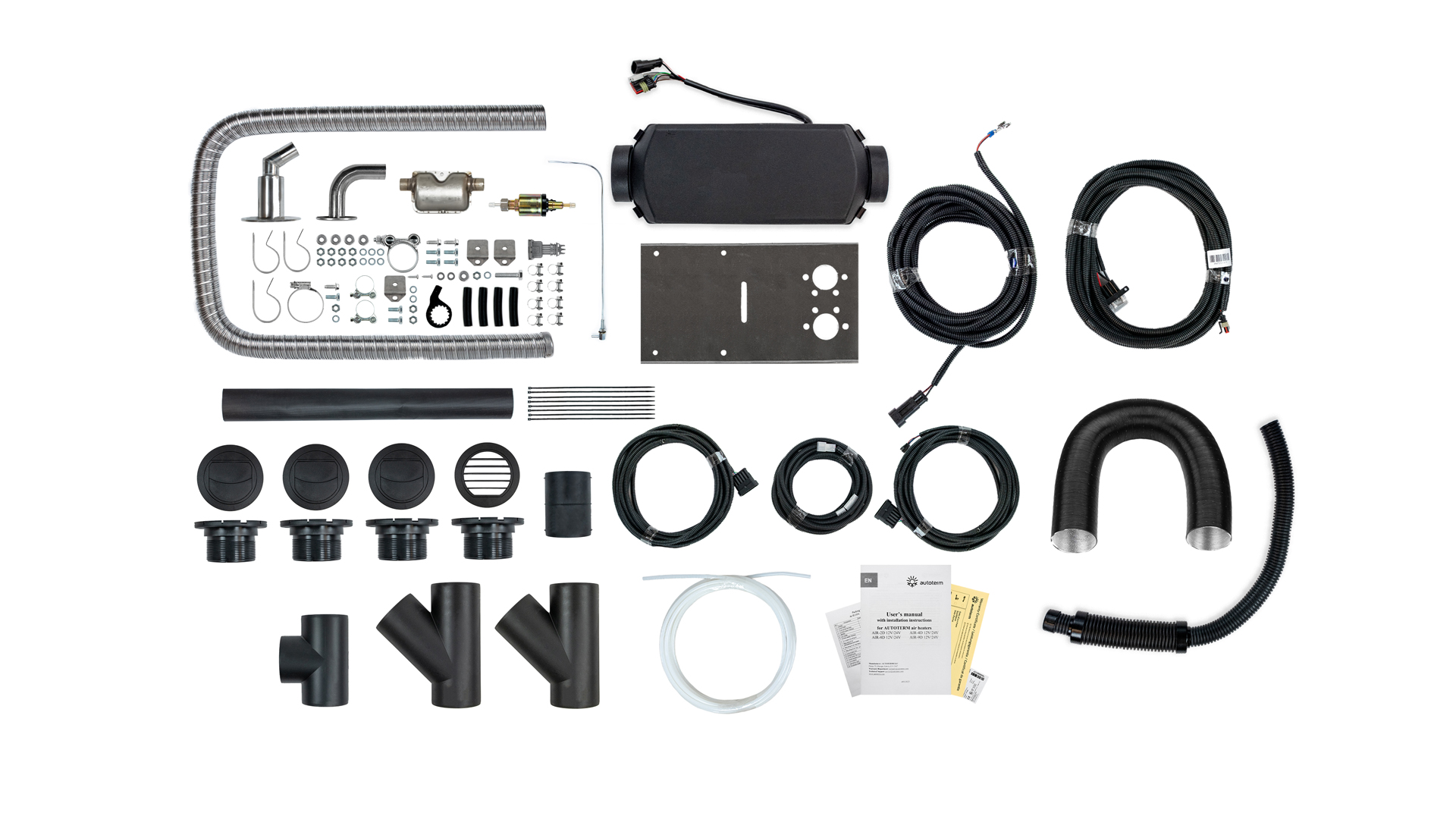

Large Set
AUTOTERM Air 2D Large Marine Set
AUTOTERM Air 2D Standard Kit
1pce
Bendable Mounting Bracket
(Assy. AT0001)
1pce
External Temperature Sensor
(Assy: 1458)
1pce
Exhaust Adapter
(Assy: AT0003)
1pce
Grille
(Assy: P4943)
1pce
Air Ducting Pipe
(Assy: DE013)
5 m
Closable Deflector
(Assy: 4099)
3 pcs
Flange
(Assy: P4931)
4 pcs
Y-shape Adapter
(Assy: P5006)
2 pcs
Air Pipe Connector
(Assy: P5004)
1pce
T-Shape Adapter
(Assy: P5008)
1pce
Control Panel Wiring
(Assy: 3298)
1pce
Air Intake Adapter
(Assy: AT0006)
1pce
SAIL WITH JOY, STORE WITHOUT WORRIES!
SMOOTH SAILING & COZY LIVING
The 2 kW heater delivers reliable warmth for boats up to 10m, keeping cabins comfortable in any weather - ideal for both short trips and longer stays.
FROST & MOLD PROTECTION DURING STORAGE
Keep your boat protected from frost and mold by maintaining a dry, well-heated cabin, ensuring it's ready to go when the season starts again.
2 kW POWER IN A COMPACT DESIGN
CUSTOMIZABLE WORKMODES FOR ALL USE CASES
Pay attention that the workmodes may change depending on the used Control Panel!
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process.
POWER MODE
The heater will operate constantly at a set power level.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when temperature drops.
UPGRADE MARINE SETS FOR WATER HEATING!
AUTOTERM combiBOIL
This universal boiler allows to also heat water, using the hot air from Air heaters. As hot air flows through the boiler to the compartment, it simultaneously heats domestic water.
Technical Data
Air 2D Marine Set Specifications
| Specification | Value |
|---|---|
|
Voltage
|
12V or 24V |
|
Heating medium
|
Air |
|
Heating power
|
0.8 -2.0 kW |
|
Heated air volume
|
34-86 m3/h |
|
Power consumption
|
10-29 W |
|
Max. work altitude
|
4200 m (High altitude control unit) |
|
Fuel
|
Diesel - EN590 |
|
Fuel consumption
|
0.10-0.24 l/h |
|
Control mode
|
Manual, standard remote control, modem |
|
Compatible control panels
|
Simple Control, OLED Control panel, Comfort Control, Comfort Boiler Control, Push Control |
|
Weight of the heater
|
2.9 kg |
|
Weight of the set
|
6.4 kg |
|

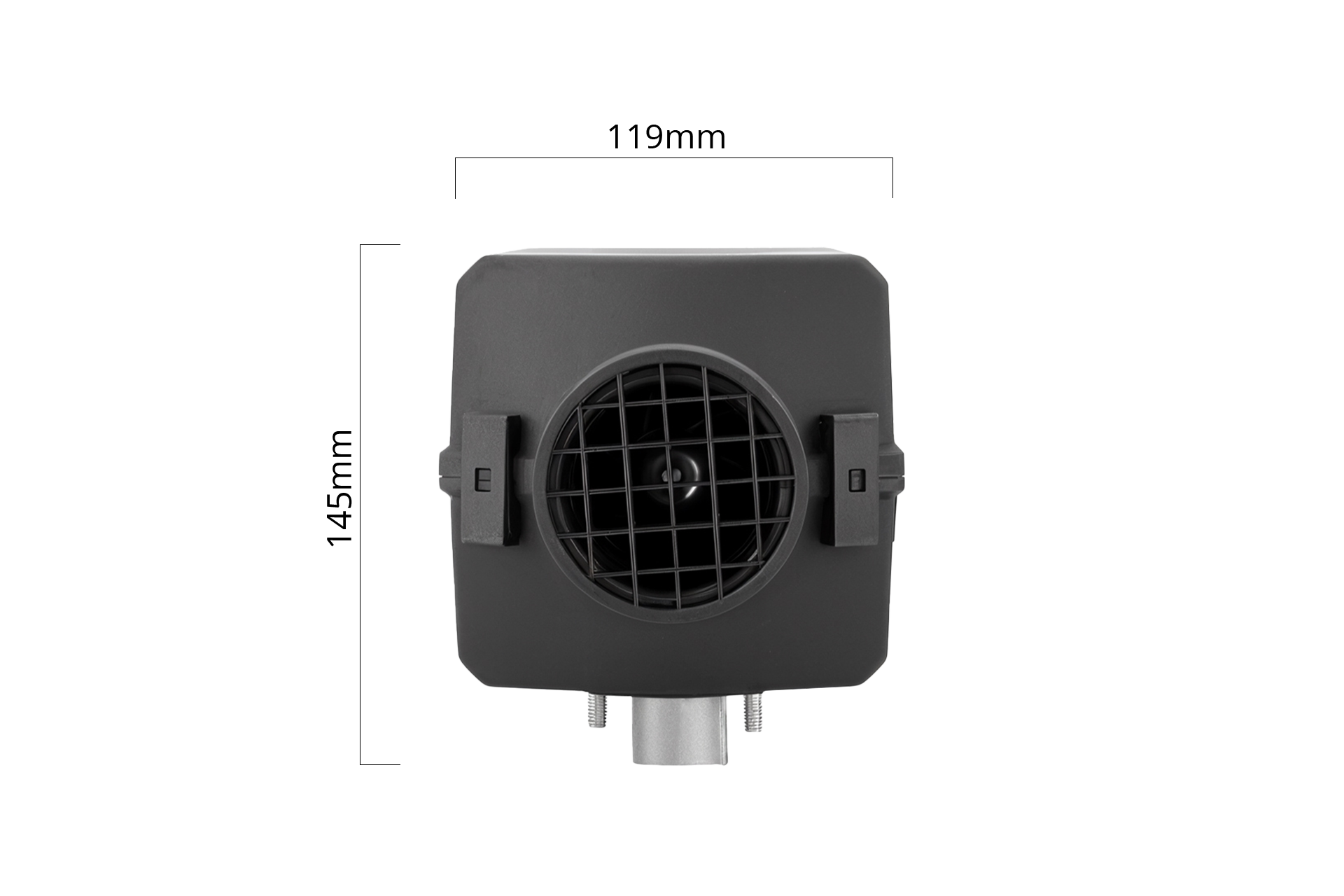

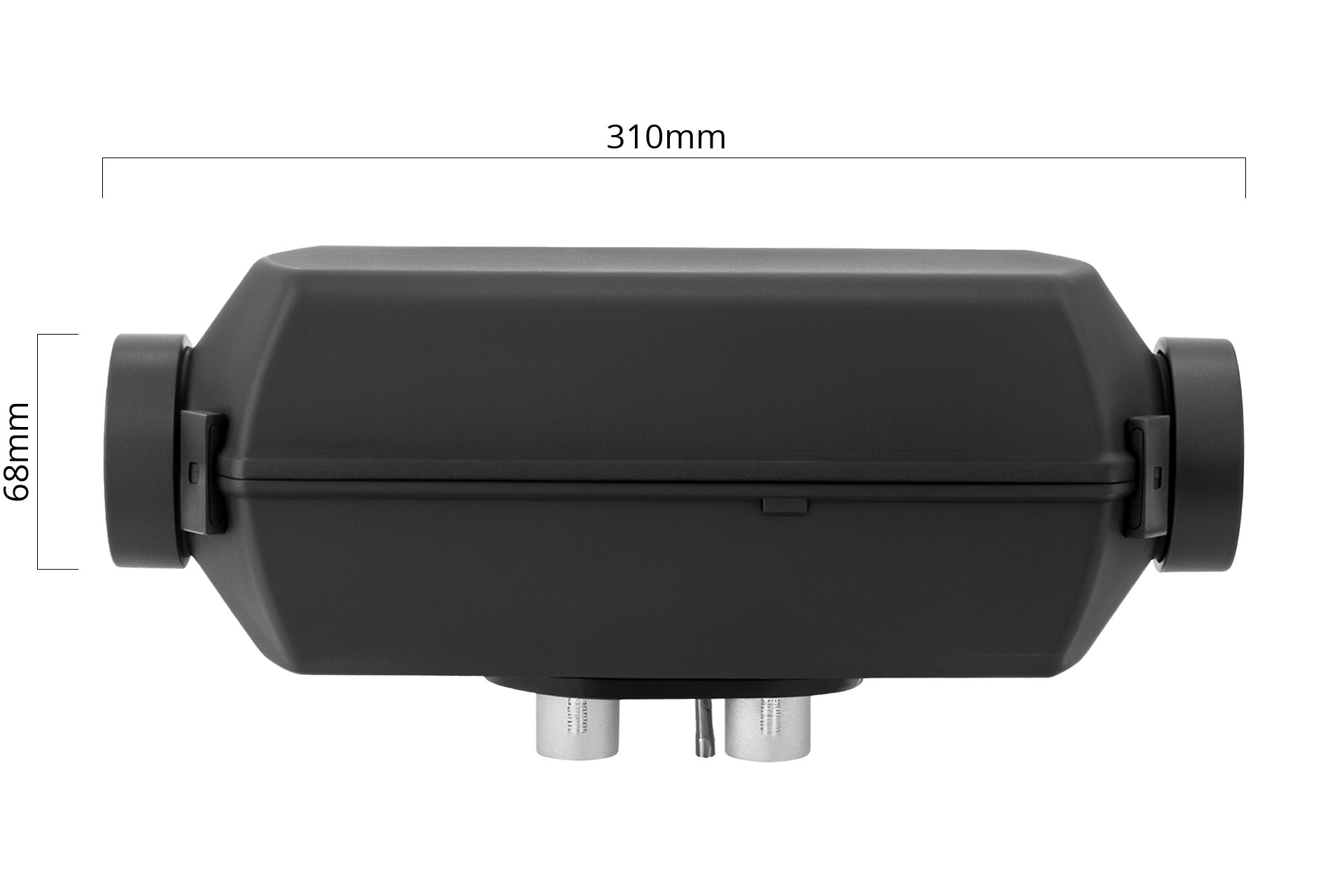

Heater dimensions
|
310x119x145 mm |
|
Package dimensions
|
40x36x17 cm |
