PASSIVE
LIQUID HEAT EXCHANGERS
Suitable for all AUTOTERM Liquid Heaters:
AUTOTERM Flow 5 & Flow 14D
5 kW

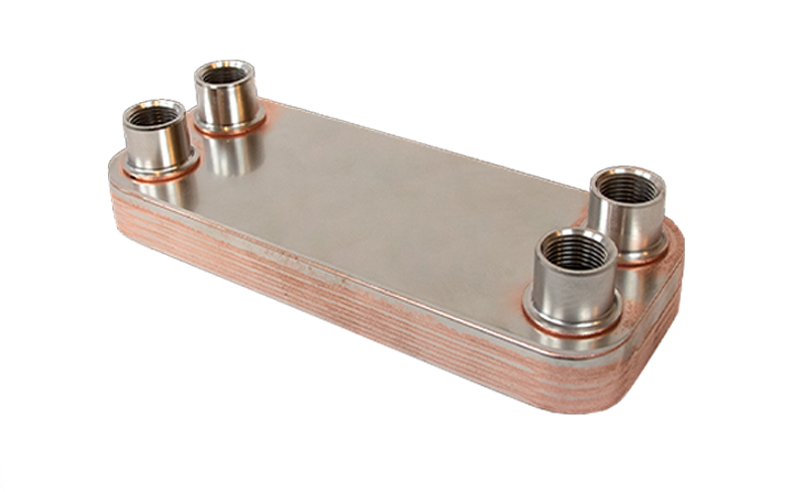

PASSIVE LIQUID HEAT EXCHANGER
FR064
Heating capacity: +/- 5 kW (heating capacity depends on ethylene glycol flow rate & temperature).
Maximum allowable pressure PS bar
31
Maximum allowable temperature TS
200°C
Minimum allowable temperature TS
-200°C
Inner diameter
Ø 1.27 cm (1/2 in)
- Dimensions: 227 x 90 x 46 mm
- Manufacturer: Eko Air
10 kW

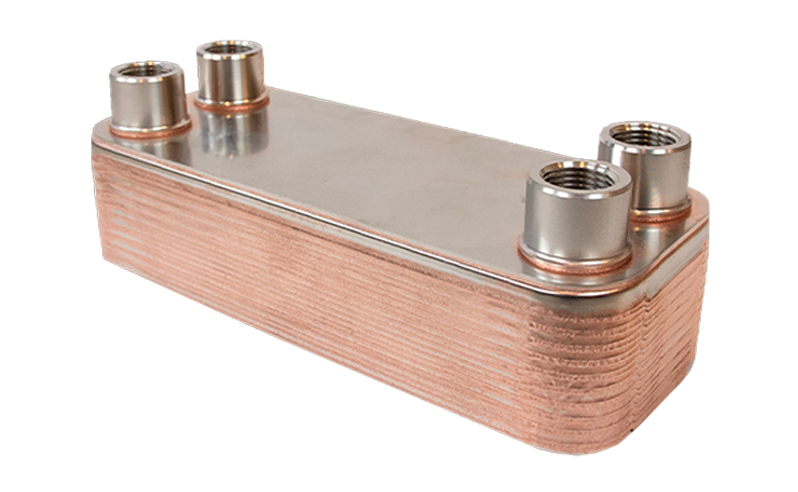

PASSIVE LIQUID HEAT EXCHANGER
FR007
Heating capacity: +/- 10 kW (heating capacity depends on ethylene glycol flow rate & temperature).
Maximum allowable pressure PS bar
31
Maximum allowable temperature TS
220°C
Minimum allowable temperature TS
-196°C
Inner diameter
Ø 1.27 cm (1/2 in)
- Dimensions: 240 x 90 x 55 mm
- Manufacturer: Eko Air
