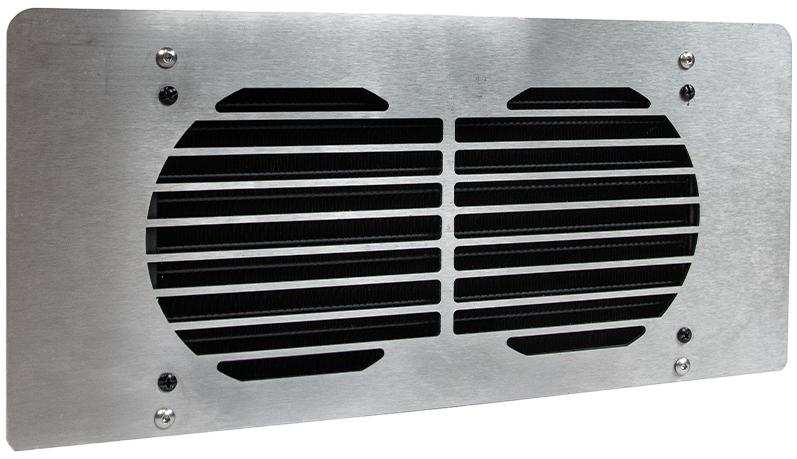

AUTOTERM
CHX SILVER

Assy: FR058

Liquid heat exchanger for room heating, equipped with 2 internal fans and a radiator. Each fan can be controlled additionally if needed or both together by a fan speed regulator.

1.4kW

Power

140m3/h

Air Flow

12/24V

Voltage

Request Pricing

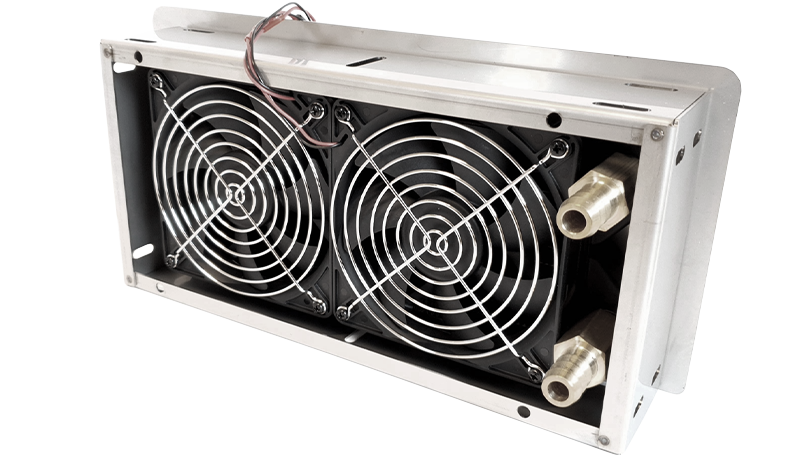

LOW NOISE & LOW CONSUMPTION

Equipped with low noise & low power consumption fans it is a great addition of comfort in your vehicle.

COMPATIBILITY

With a heating capacity of 1.4 kW and a hot air flow rate of 140 m³/h, the AUTOTERM CHX is an excellent choice for campervans, RVs, and boats.

It pairs perfectly with any AUTOTERM Flow series liquid heater for enhanced comfort and efficiency.

CONTROL OPTIONS FOR AUTOTERM CHX

AUTOTERM Fan speed control FC9

Assy: FR060

FC9 is equipped with 4 sliders for smooth fan speed control. These 4 sliders can each be connected to a CHX heating matrix or each slider can be connected to an individual AUTOTERM CHX fan for even more precise control as each CHX heating matrix is equipped with 2 fans.

DC Output 0V-12V DC

Power output Up to 50W per channel

DC Input +12V (standard 4-pin connector)

Control Channels 4

LED Colour White, Blue, Green, Cyan, Red, Purple, Yellow

Dimension 148.5 x 42.5 x 75 mm

Front body Aluminium

1-4 fan speed control

AUTOTERM Thermal fan controller CHM36

Assy: FR059

AUTOTERM CHM36 is a programmable controller with heating/cooling functions that work based on temperature read-out according to the set start-up and power-off temperature. This thermal fan controller is an excellent addition to the AUTOTERM CHX heating matrix for automatic room/space heating by your set temperature with our without additional fan speed controller AUTOTERM FC9.

Voltage DC 12/24V

Front plate material Aluminum

Number of channel outputs 4 channels

Max power load per channel 30W

Dimensions 92 x 44 x 35 mm

Celsius / Fahrenheit degrees
Heating or cooling modes
Adjustable hysteresis
Temperature correction
Start time delay

Technical Data
