AUTOTERM
monoBOIL 3L
The perfect hot water solution for small campers, boats, and off-grid setups. Designed for efficiency and reliability, this compact electric boiler heats water up to 83°C, ensuring comfort even in the most remote locations.
ULTRA-COMPACT & SPACE-SAVING DESIGN
The 3L monoBOIL is designed for maximum efficiency in minimal space. Its compact size makes it an ideal fit for small campers, boats, and tiny homes where every inch matters. Despite its small footprint, it delivers reliable hot water without compromising performance.
WARM WATER OUTPUT
monoBOIL heats water up to 83 °C, and when mixed with cold water, 3 liters can provide roughly 9 liters of warm water. In practice, this is usually enough for two adults to take consecutive showers before reheating is needed.

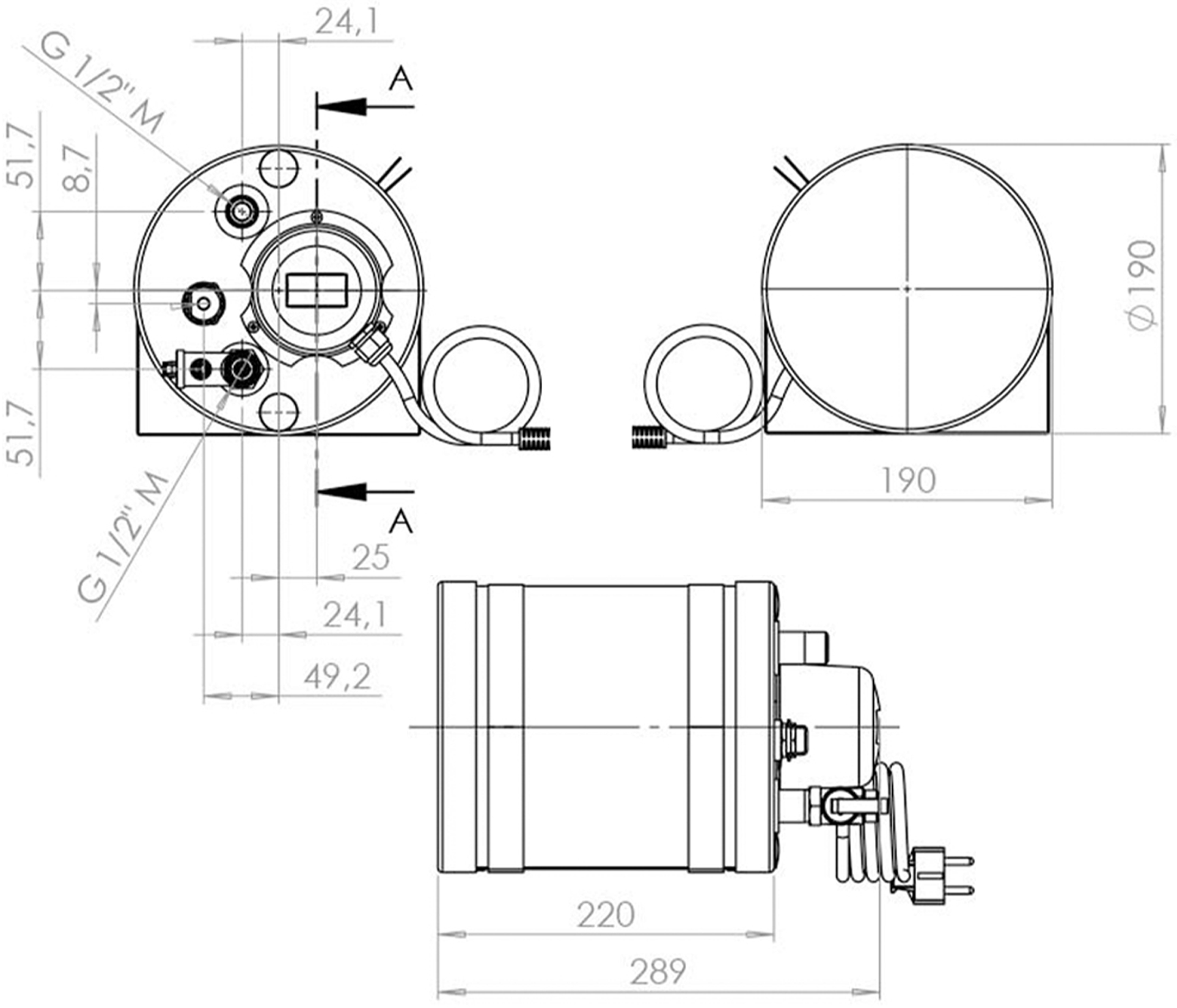

PERFECT FITMENT FOR TIGHT SPACES!
The total dimensions of the 3-Liter combiboil are 289x220x190mm
PLUG & PLAY
Independent Heating With Electricity!
SMART FEATURES FOR COMFORTABLE ADVENTURES!
Flexible Mounting
Flexible installation on the floor, wall, or sloped surfaces. Its cylindrical shape allows rotation within the two mounting clamps, ensuring a practical fit in any vehicle.
Frost Protection
When the water temperature drops to 2°C, the heater will automatically heat the water to +15°C and Air to +7°C, protecting the boiler from freezing.
Integrated Safety Valve
If the system pressure is too high, a safety valve opens and prevents damage or leaks to the boiler and water system in the vehicle.
Integrated Thermostat
Built-in in the 120/230V versions and as an external module (TSR, included) in the 12/24V versions.
Minimized Heat Loss
Premium closed-cell polyurethane foam insulation for minimized heat loss.
Overheat Protection
Turns off the heating when the water temperature reaches 78°C.
DC & AC Applications
With four power versions - 12V, 24V, 120V, and 230V, the combiBOIL adapts to any system setup.
AUTOTERM Integration
Fully compatible with all AUTOTERM Air and Flow Series heaters.
INSTALLATION EXAMPLE
(All installation types mentioned below can be combined and switched on the go)
monoBOIL INSTALLATION COMPONENT LIST:
monoBOIL 3l SPECIFICATION
| Specification | Value |
|---|---|
|
Voltage/Power
|
12V 300W / 24V 600W / 120V 500W / 230V 500W |
|
Number of persons that can take consecutive showers
|
2 |
|
Maximum pressure
|
3bar |
|
Time to heat water from 20°C to 60°C
|
~60 minutes |
|
Boiler dimensions
|
289×190×190mm |
|
Air inlet/outlet size
|
ø90mm |
|
Body
|
Made of 316L stainless steel |
|
Weight of the Boiler
|
4,2 kg |
|
Package dimensions
|
50,00×36,50×36,50 cm |
