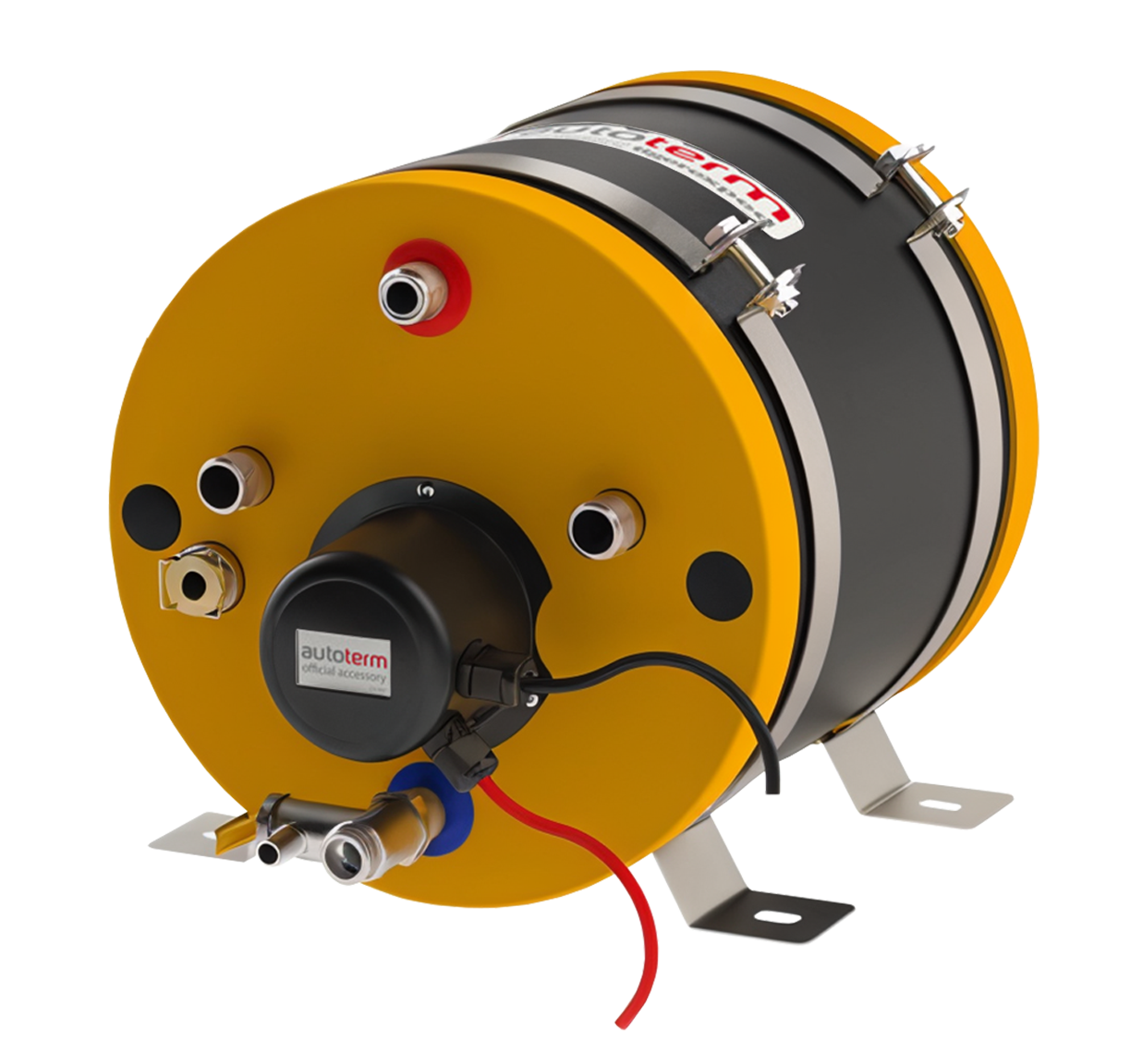

AUTOTERM
duoBOIL
The AUTOTERM duoBOIL utilizes two independent heat sources - hot coolant and electric power - to ensure a reliable supply of domestic hot water, whether you're off-grid or connected to shore power.
COMPATABILITY
Compatible with Air heaters, Liquid heaters, Engines, and Electricity, allowing all the mentioned heat sources to be connected and switched dynamically.
WITH LIQUID HEATERS OR ENGINE
Water is heated with the help of hot coolant running through the boiler.
WITH ELECTRICITY
The water is heated by connecting the boiler to an electrical power source.
SMART FEATURES FOR EASY USAGE!
Flexible Mounting
Flexible installation on the floor, wall, or sloped surfaces. Its cylindrical shape allows rotation within the two mounting clamps, ensuring a practical fit in any vehicle.
Frost Protection
When the water temperature drops to 2°C, the heater will automatically heat the water to +15°C and Air to +7°C, protecting the boiler from freezing.
Integrated Safety Valve
If the system pressure is too high, a safety valve opens and prevents damage or leaks to the boiler and water system in the vehicle.
Integrated Thermostat
Built-in in the 120/230V versions and as an external module (TSR, included) in the 12/24V versions.
Minimized Heat Loss
Premium closed-cell polyurethane foam insulation for minimized heat loss.
Overheat Protection
Turns off the heating when the water temperature reaches 78°C.
DC & AC Applications
With four power versions - 12V, 24V, 120V, and 230V, the combiBOIL adapts to any system setup.
AUTOTERM Integration
Fully compatible with all AUTOTERM Air and Flow Series heaters.
AVAILABLE IN 9-LITER CAPACITY
TWO POWER CONFIGURATIONS - 12V 300W & 230V 500W

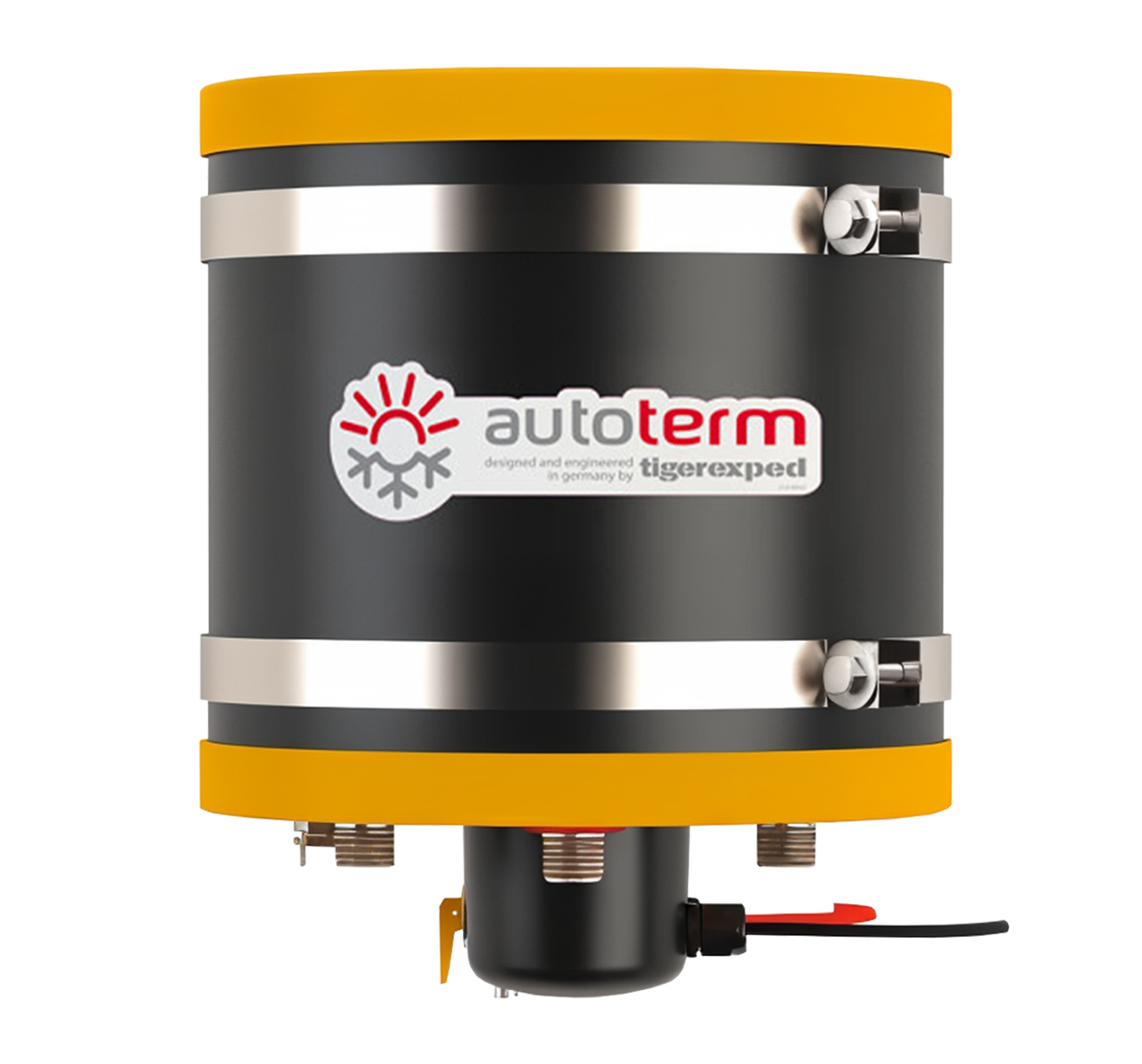

DURABLE AND ROBUST BUILD
The boiler features a durable, saltwater-resistant 316L stainless steel body with a shockproof, impact-resistant housing for maximum longevity.
Comes with an additional Thermostat Module for overheating protection.

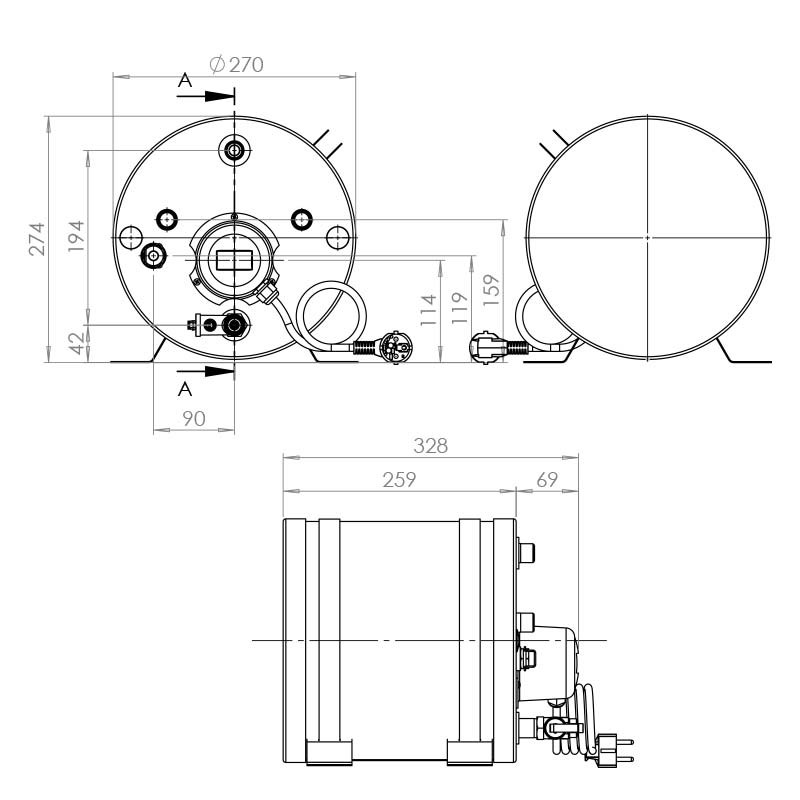

COMPACT DESIGN
The AUTOTERM duoBOIL is compact, yet when mixed with cold water, it delivers up to ~21 liters of warm water before needing to reheat.

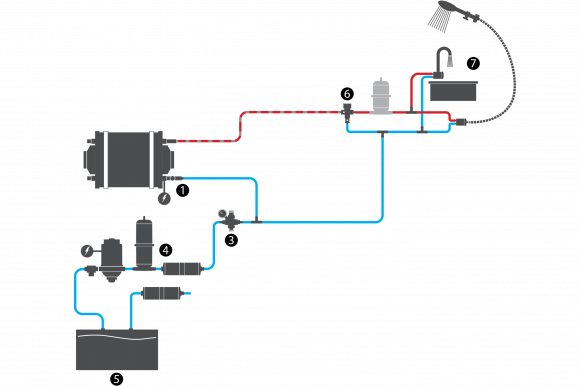

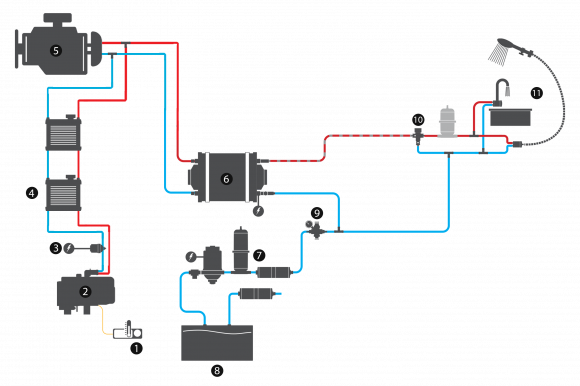

INSTALLATION EXAMPLES
COMPONENT LIST:
COMPONENT LIST:
CONTROL
YOUR HEATER AND BOILER FROM A SINGLE PANEL!
The AUTOTERM duoBOIL is controlled with the Comfort Boiler Control panel - an enhanced version of the Comfort Control panel, which is designed to seamlessly manage all AUTOTERM boilers and heaters.
RECOMMENDATIONS FOR THE SMOOTHEST USER EXPERIENCE

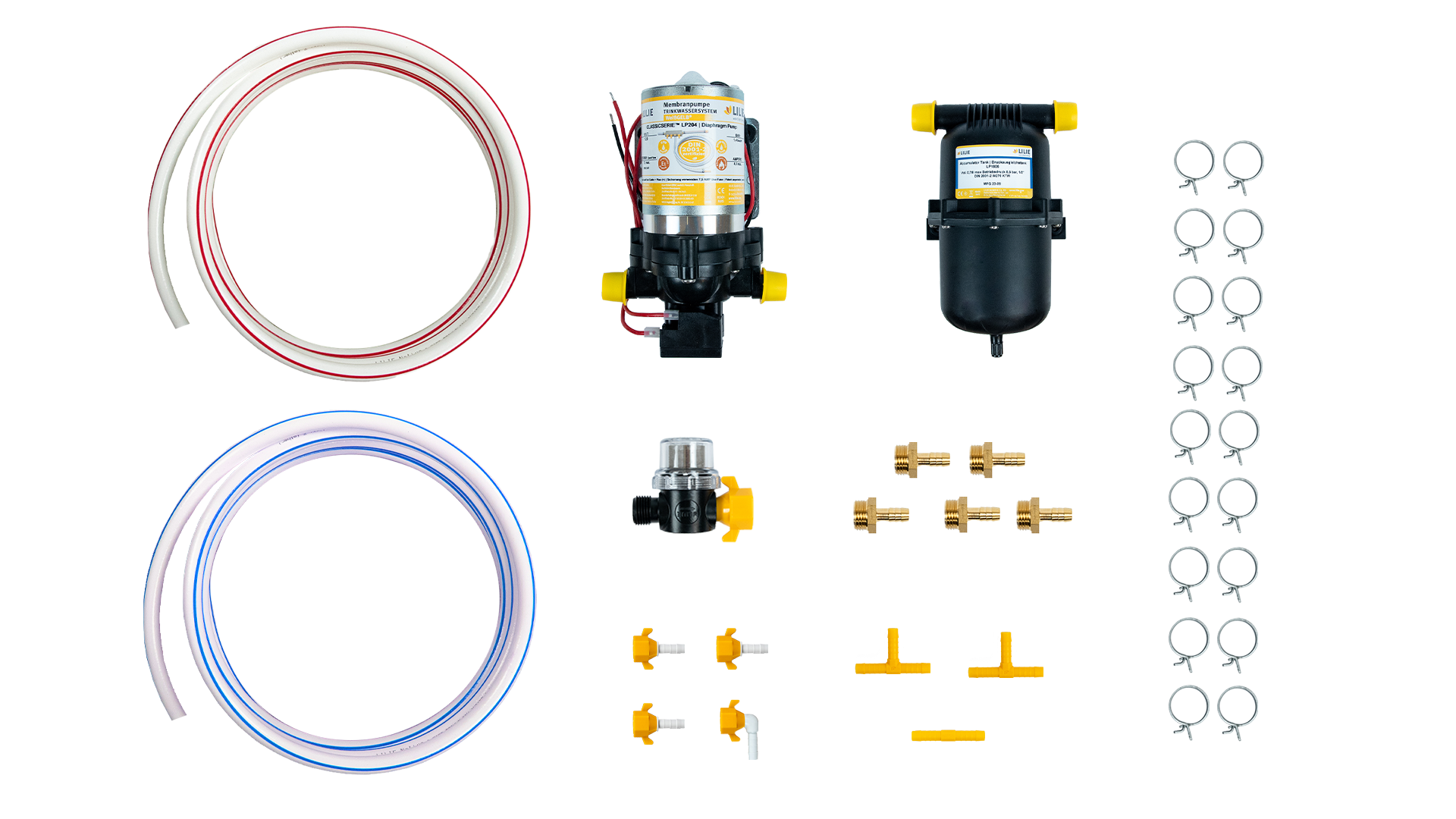

DOMESTIC WATER KIT:

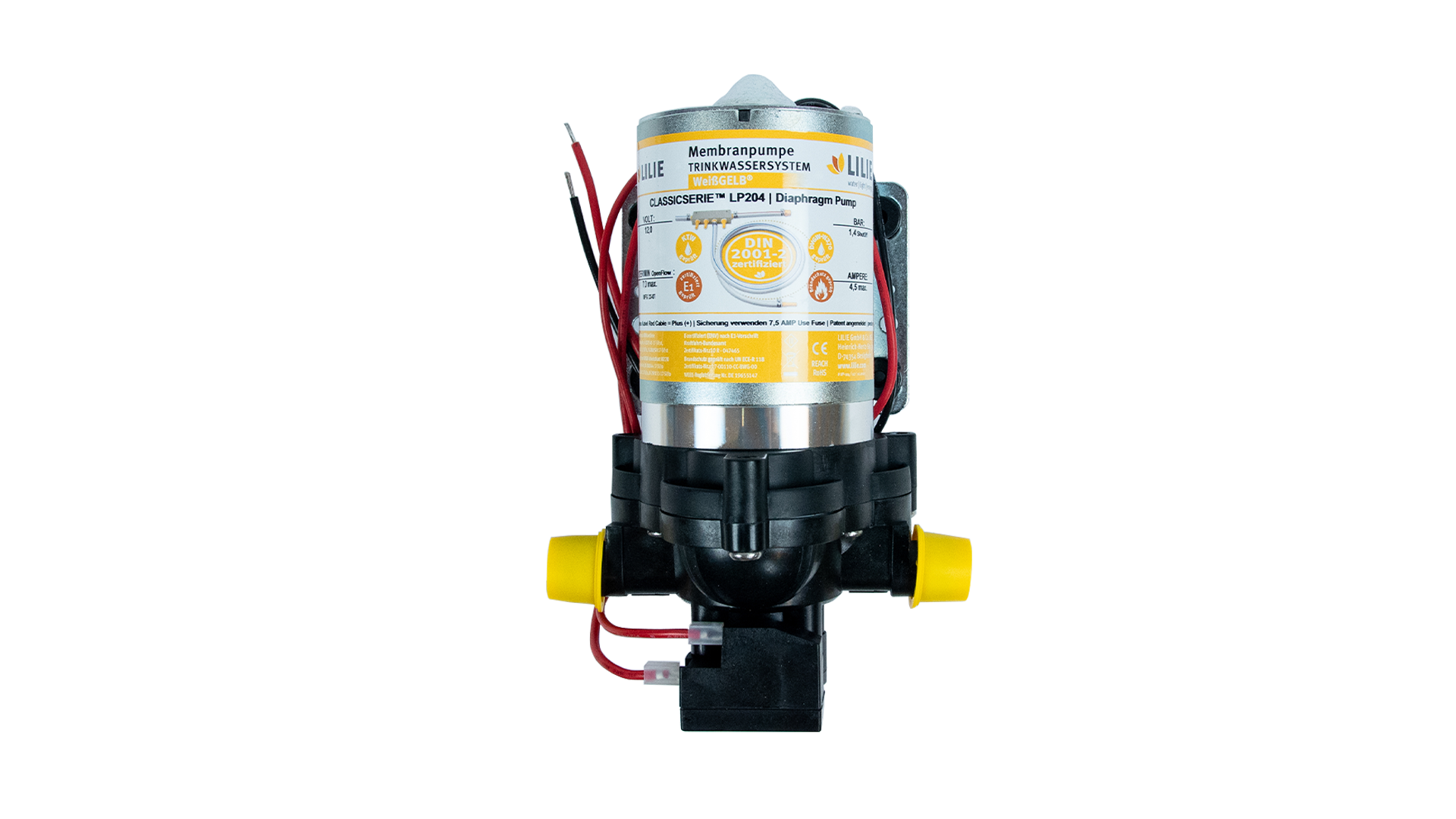

WATER PUMP
Ensures water circulation. If you already have a pressure water pump in your vehicle, you don’t need to replace it to use with the boiler system.

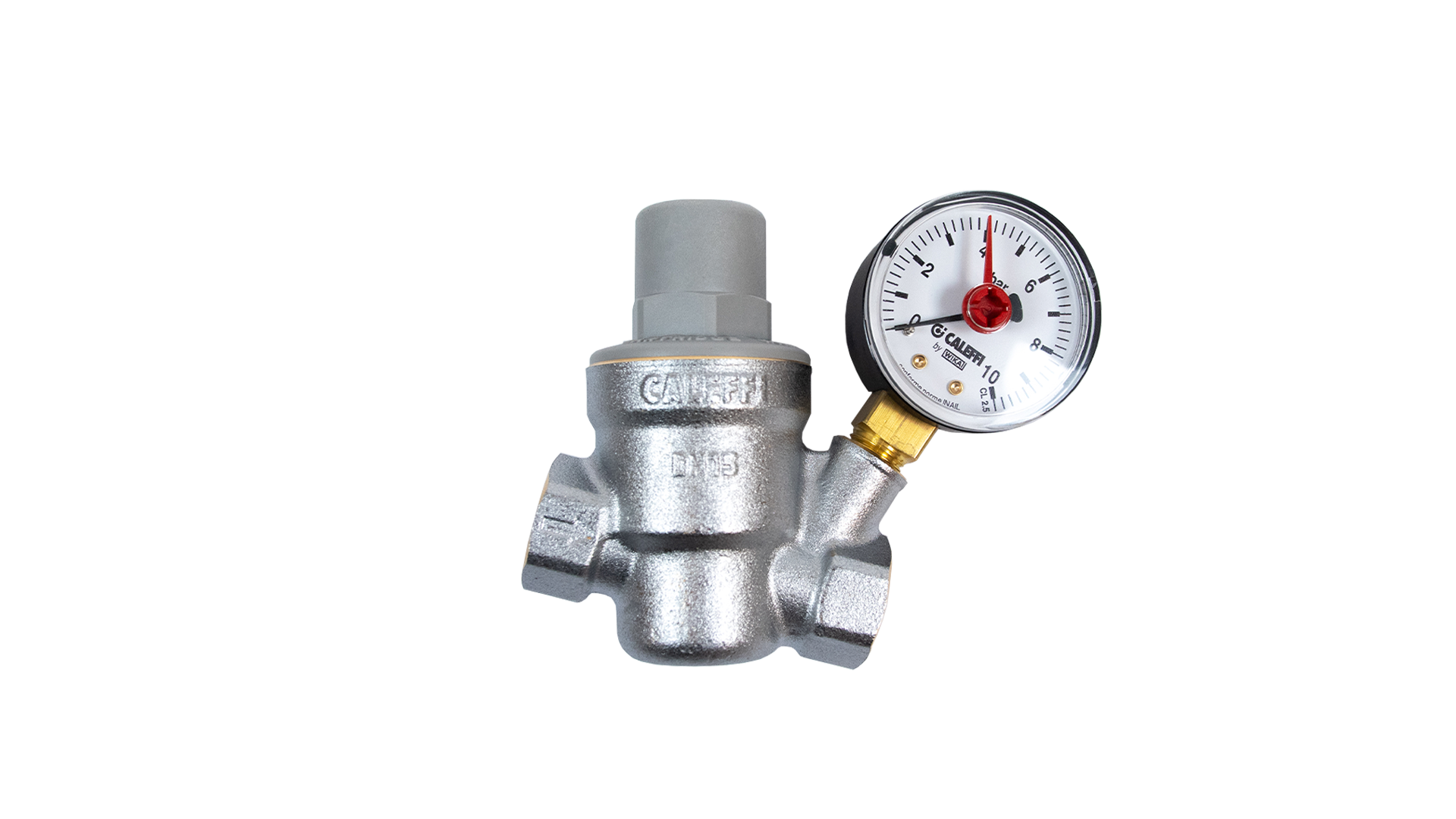

PRESSURE VALVE
Eliminates risks of an overpressurized domestic water system, that could cause leaks.

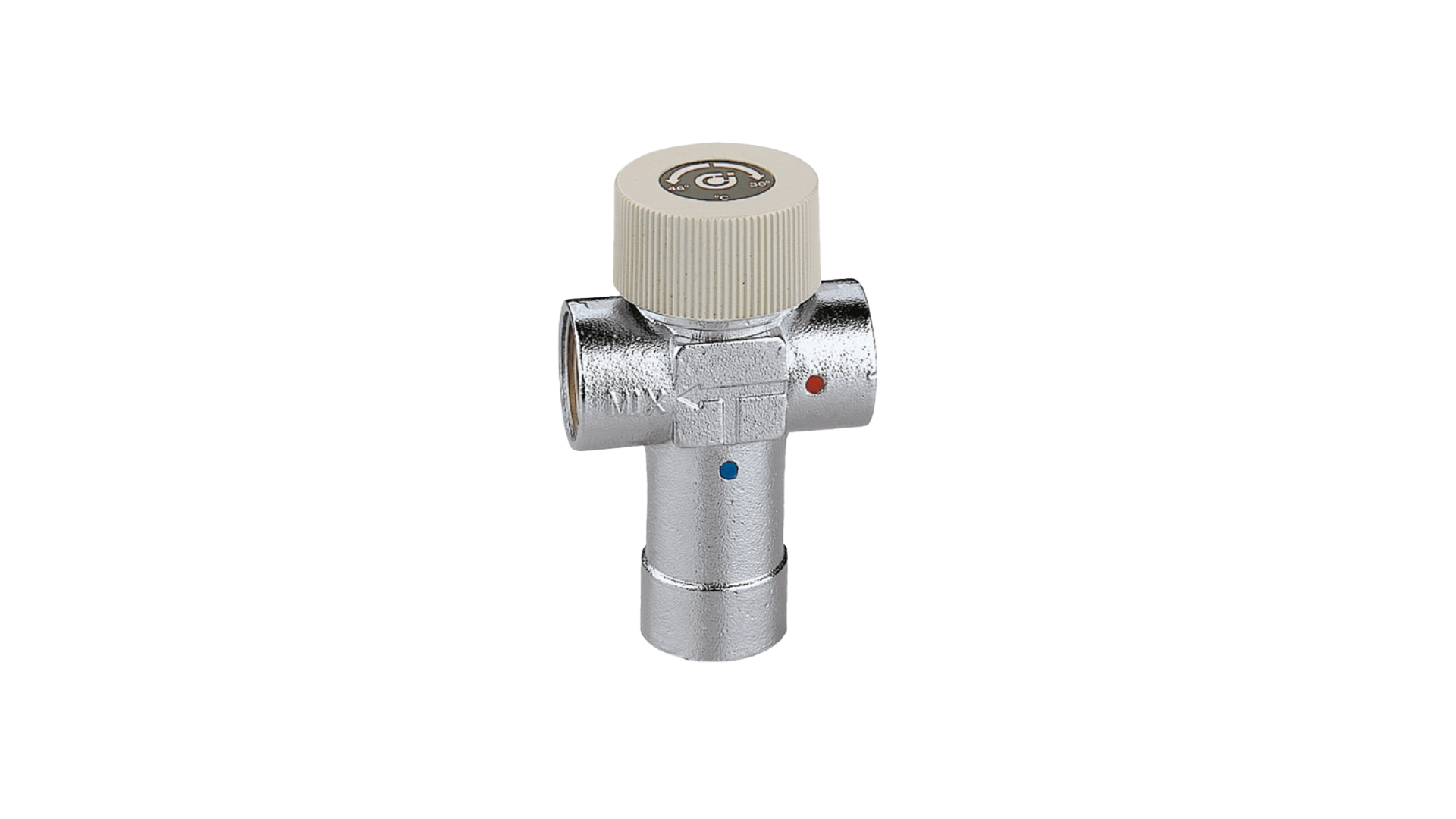

THERMOSTATIC MIXING VALVE
Mixes hot and cold water to ensure optimal temperature and extend the warm water volume.
duoBOIL SPECIFICATION
| Specification | Value |
|---|---|
|
Voltage/Power
|
12V 300W / 230V 500W |
|
Number of persons that can take consecutive showers
|
3 |
|
Maximum Pressure
|
3bar |
|
Time to heat water from 20°C to 60°C
|
~60 minutes |
|
Compatible heaters
|
Flow 5, Flow 14D |
|
Compatible control panels
|
Comfort Boiler Control |
|
Boiler dimensions
|
328×270×274mm |
|
Body
|
Made of 316L stainless steel |
