Simple
Control Panel
This control panel provides a convenient and straightforward solution for managing AUTOTERM Air heaters. Designed with a single rotary knob, this user-friendly panel allows to adjust settings effortlessly.

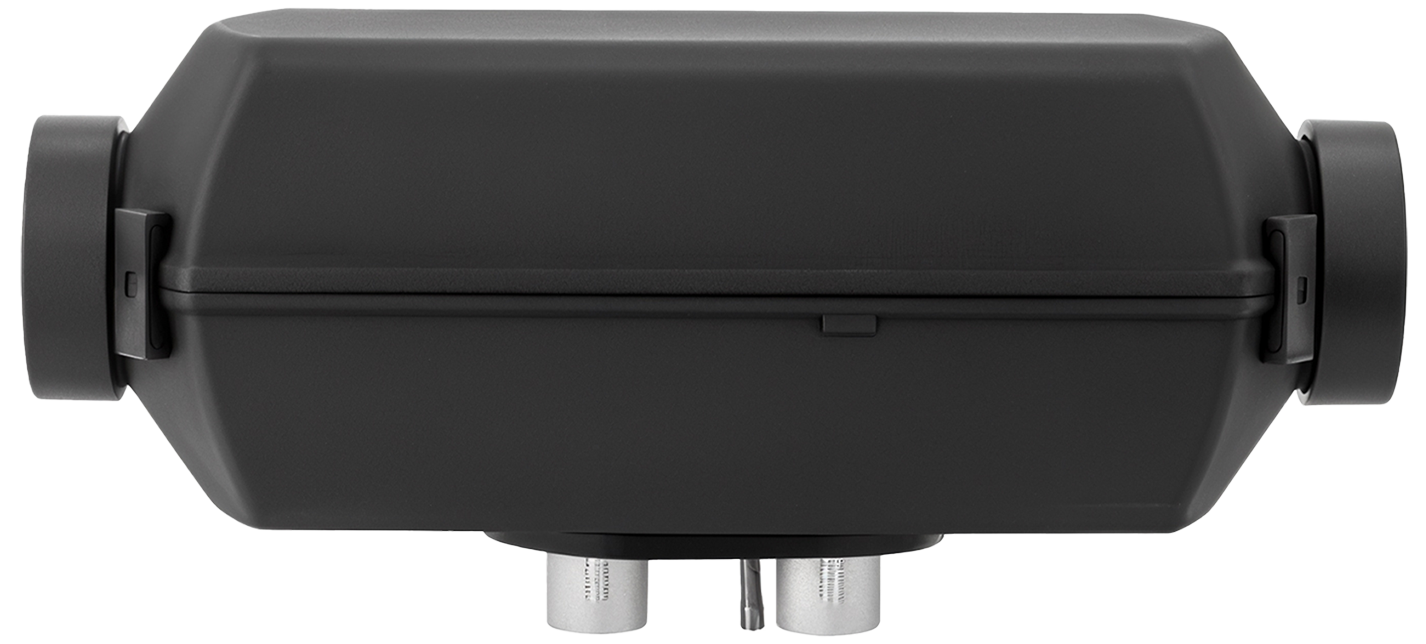

WORKMODES WITH AIR SERIES
The workmodes change, depending on whether an External Temperature Sensor (Assy: 1458 or AT4-0017-AA0) is connected to the heater!
NO TEMPERATURE SENSOR
By default, without adding a temperature sensor, the heater will work in Power & Ventilation Mode.
POWER MODE
The heater will operate constantly at a set power level.
VENTILATION MODE
Ensures efficient air circulation without activating the heating function.
TEMPERATURE SENSOR CONNECTED
When adding the sensor, it will work in Temperature & Heat + Ventilation and Ventilation Mode.
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.
VENTILATION MODE
Ensures efficient air circulation without activating the heating function.
SIMPLE CONTROL PANEL VIDEO OVIERVIEW
A quick overview - workmodes, specifications, and more!
Simple Control SPECIFICATION
|
“Power mode” (If the external sensor is not connected)
|
Designed for quickest possible heating of the space; The heater operates continuously at a set power. |
|
“Temperature mode” (If the external sensor is connected)
|
Heat output decreases as the difference between the desired temperature and the temperature in the space decreases. * The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below temperature setpoint before starting again |
|
“Ventilation mode”
|
Designed for air circulation in the space. |
|
Ventilation during heating” - function (If the external sensor is connected)
|
Designed to maintain the required temperature in the space; After the required temperature is reached, the space heating is stopped and space air circulation is performed; Controls the space temperature; if the temperature drops below the set point, the heater will start in Ventilation mode. |
|
Dimensions
|
50x36 x18mm |
|
|
* Please note, that AUTOTERM air heaters with production date 16.11.2016 or older does not support Ventilation mode. You can check your air heaters AUTOTERM production date on the warranty card. ** Please note, that all AUTOTERM air heaters need external temperature sensor (assy.1458), so that the "Power mode" and "Ventilation during heating” function would work. |
